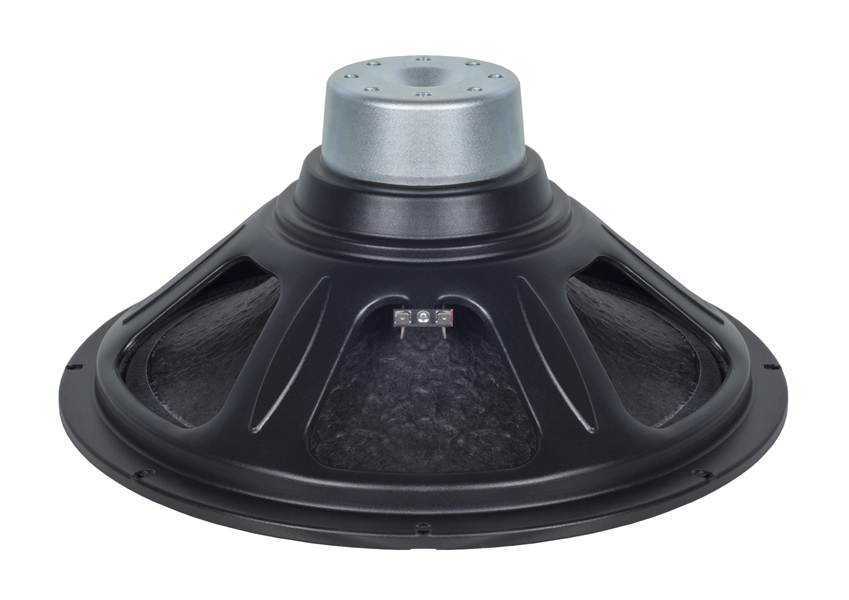

B&C 12CL76 (8 ohm) Loose Speaker

  • Sale
  • R 3,399.00
  • Regular price R 3,999.00
Tax included.


Description

Features

  • 700 W continuous program power capacity
  • 76 mm (3 in) copper voice coil
  • 45 - 3000 Hz response
  • 5 dB sensitivity
  • Ventilated voice coil gap for reduced power compression


Specifications

  • Nominal Diameter: 320 mm (12.0 in)
  • Nominal Impedance: 8
  • Minimum Impedance: 5
  • Nominal Power Handling350 W
  • Continuous Power Handling:700 W
  • Sensitivity5 dB
  • Frequency Range: 45 - 3000 Hz
  • Voice Coil Diameter: 76 mm (3.0 in)
  • Winding Material: Copper
  • Former Material: Glass Fibre
  • Winding Depth: 0 mm (0.67 in)
  • Magnetic Gap Depth: 0 mm (0.43 in)
  • Flux Density: 05 T

Design

  • Surround Shape: Triple Roll
  • Cone Shape: Exponential
  • Magnet Material: Neodymium Inside Slug
  • Spider: Single
  • Pole Design: Straight Pole
  • Woofer Cone Treatment: WP Waterproof Front Side
  • Recommended Enclosure: 0 dm3(1.41 ft3)
  • Recommended Tuning: 60 Hz

Parameters

  • Resonance Frequency: 48 Hz
  • Re: 2
  • Qes: 22
  • Qms: 8
  • Qts: 21
  • Vas: 0 dm3(2.1 ft3)
  • Sd: 0 cm2(80.9 in2)
  • 9 %
  • Xmax: 0 mm
  • Xvar: 5 mm
  • Mms: 0 g
  • Bl: 4 Txm
  • Le: 5 mH
  • EBP: 218 Hz

Mounting and Shipping Info

  • Overall Diameter: 313 mm (12.32 in)
  • Bolt Circle Diameter: 299 mm (11.77 in)
  • Baffle Cutout Diameter: 0 mm (11.1 in)
  • Depth: 142 mm (5.59 in)
  • Flange and Gasket Thickness: 9 mm (0.35 in)
  • Air Volume Occupied by Driver: 3 dm3(0.08 ft3)
  • Shipping Weight9 kg (8.6 lb)

Service Kit

  • Recone kitRCK12CL768Discover more
  • 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minumum impedance. Loudspeaker in free air.
  • Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
  • Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance.
  • Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
