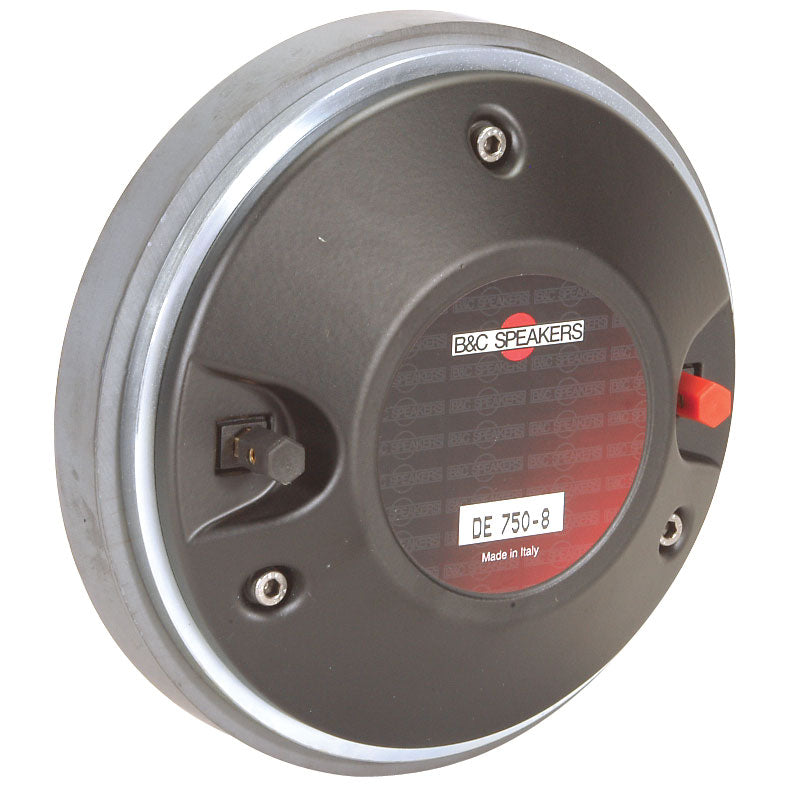

DE 750 | Hf Compression drivers 2" high frequency compression driver. The particular mylar/titanium diaphragm using a 3" edgewound flat aluminium wire voice coil and a optimized very high energy ceramic magnet assembly using a copper shorting ring produce smooth response, very high efficiency and outstanding sonic properties. Recommended for low crossover frequencies.
Specifications
Throat Diameter 50 mm (2 in)
Nominal Impedance 8Ω
Minimum Impedance 8.1Ω
Power Handling (800 –20000 Hz)
Nominal 80 W
Continuous Program 160 W
Sensitivity (1W/1m) 108.5 dB
Frequency Range 0.5 – 18 kHz
Recommended Crossover5 800 Hz
Voice Coil Diameter 75 mm (3 in)
Winding Material Aluminium
Inductance 0.14 mH
Diaphragm Material Titanium
Flux Density 1.9 T
