1 inch exit

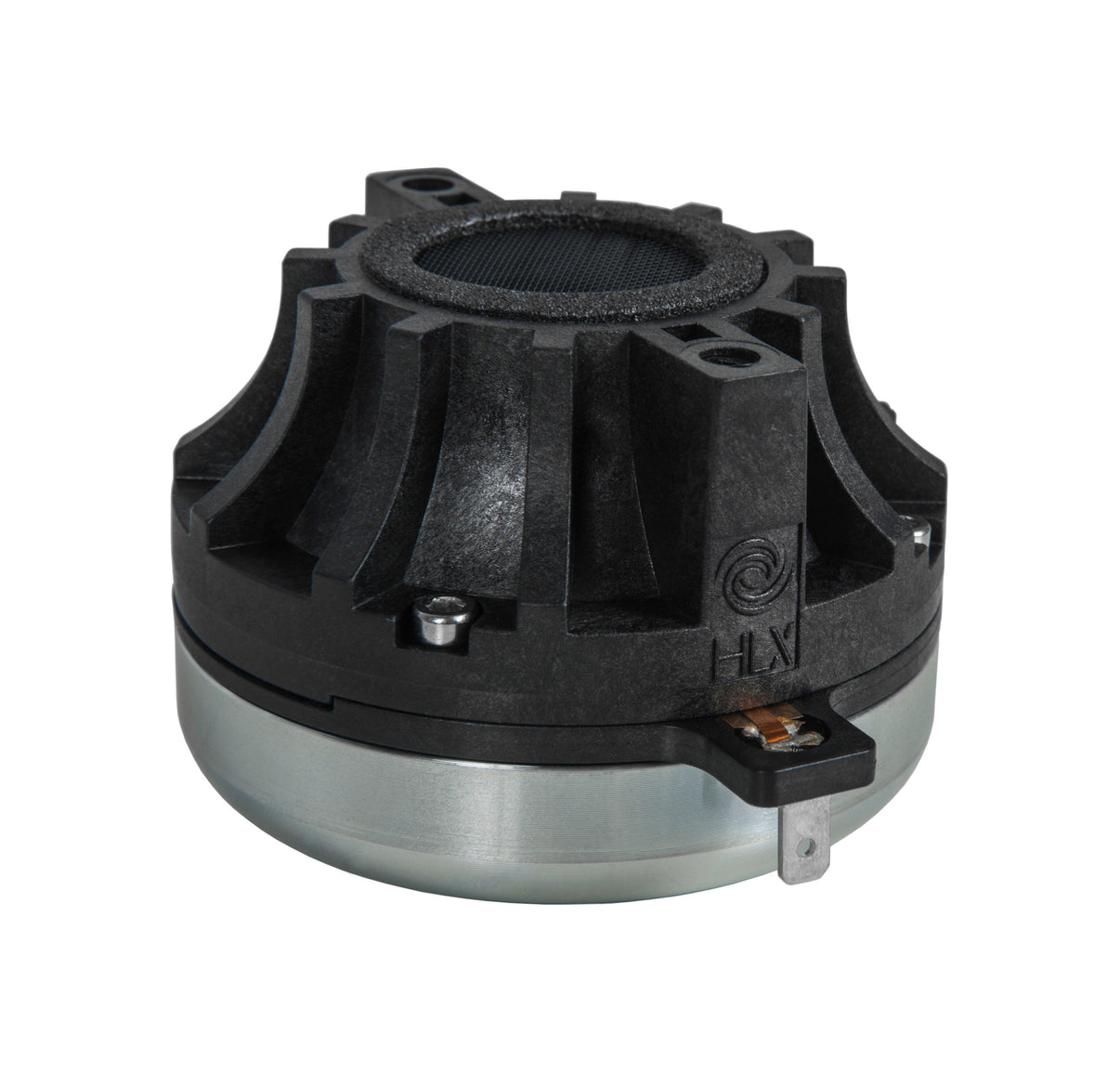

HLX Series - The Helical Approach
B&C has a reputation for performance, by turning the limits of traditional compression driver design on their head. HLX™ : Compression driver efficiency in miniature. The HLX™ phase plug (US Patent #12149906) has a central channel that is twisted, like DNA, to gain the length required to match the outer channels. This technique works with standard, cost-effective injection mold tooling and plastics by rotating the inner die along a screw profile. The convex dome design, so achieved, has a number of significant cost and performance advantages.
- Minimized diameter, weight, and cost
- lncreased diaphragm area
- Low, ~1kHz Crossover point
- Reduced distortion, especially intermodulation distortion
- More efficient magnetic flux use
Diaphragm Material
HT Polymer
Voice Coil Diameter
44 mm (1.7 in)
Continuous Power Handling
40 W
Throat Diameter
25 mm (1 in)
Features
- Very Compact 69 mm diameter
- 40 W continuous program power capacity
- 1" horn throat diameter
- 44 mm (1.7 in) aluminium voice coil
- HT Polymer diaphragm
- 1000 - 18000 Hz response
- 109 dB sensitivity
Specification
Throat Diameter
Mounting and Shipping Info
Two M5 holes 180° on 57 mm (2.24 in) diameter.
Diameter is 90mm at widest point (driver rotated, across mounting studs).
Service Kit
hf Replacement Diaphragm
MMDDH4508
