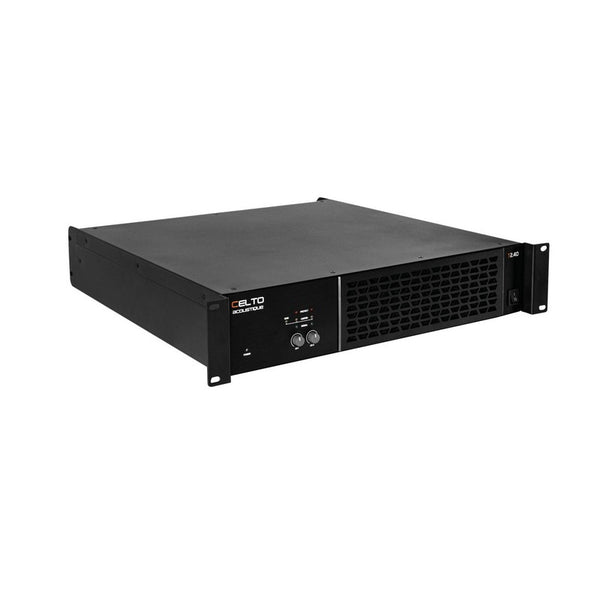

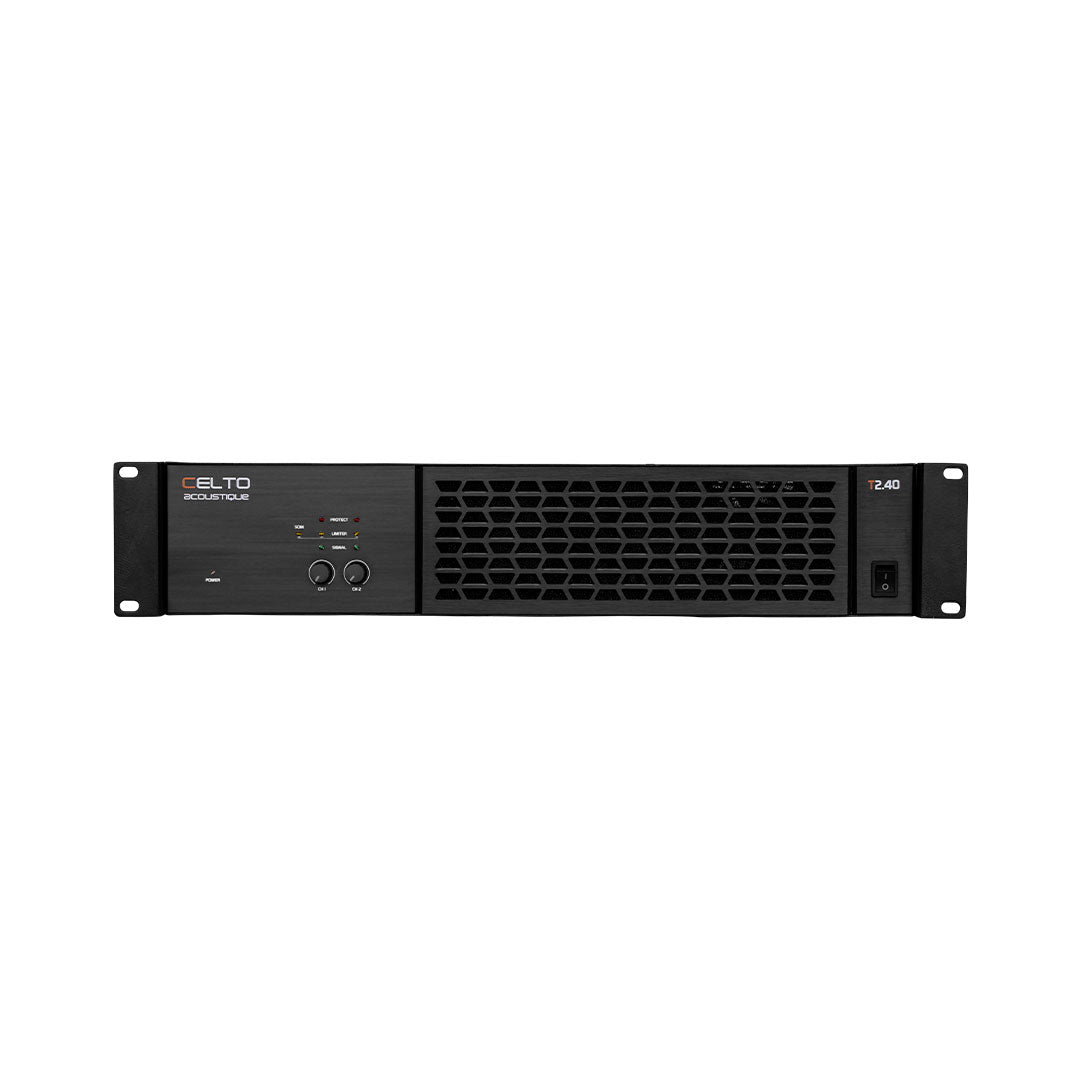

Touring Series Amplifiers
Oversized PULSAR Push-Pull Switch Mode Power Supply
TrueSound Class D with High-Speed High Current MOSFETs
Studio quality preamp with TrueRMS VCA limiters
MCU Controlled 3D-Guard SOM [Smart Overheat Management]
SuperCharged 105° C long-life capacitors
FEM optimized R:Cool radial heat sinks
Simple layout and assembly for easy servicing
Genuine parts exclusively provided by world class suppliers
Compact and Lightweight 2U Touring grade format
Specifications
| Max output Power EIA 1kHz 1% THD (EIA = 33ms ON / 66ms OFF) | 2x 2500W 8 ohms | 2x 4000W 4 ohms | 2x 4000W 2 ohms (not recommended) |
| Overall gain | 34dB (50 times voltage) |
| Sensitivity at 8 ohms | 2.82Vrms (+11dBu) |
| Signal to Noise Ratio (A weighted) | 115dB |
| Frequency Response (-1dB) | 20~25000Hz |
| Typical THD (half power, 1kHz, 8 ohms) | <0.05% |
| Typical IMD (1kHz at 4:1, -20dB) | <0.2% |
| Crosstalk (1kHz) | >75dB |
| Slew Rate | >60V/us |
| Input Impedance | 20 kΩ |
| Damping factor (1kHz, 8 ohms) | Soft-Start, Short-Circuit, Over and Under-Voltage, Over-Current, Over-Load, DC Output, Temperature, SOM (Smart Overhead Management) |
| Operating Voltage | 190~250VAC 50-60Hz |
| Preamp | Proprietary PureSound Circuit for unmatched sound quality (Audiophile capacitors in signal path, High Voltage Opamps, Ultra Low Noise design), Studio grade TrueRMS VCA limiter, Continuous protection, RF protection, Overload protection |
| Power Supply (PSU) | Advanced Switch Mode with 3D-Guard tracking, 105C long life SuperCharged Capacitors |
| Output stage | Fully Discrete 4th generation proprietary Class D (93% efficiency at full power), Differential circuit for Load-Independent linear frequency response, Half bridge design with high-Speed high-Current MOSFETs, 105C Long Life capacitors |
| Cooling | Front to back airflow Temperature regulated SUNON MagLev fans (50000 Hours, dustproof) FEA optimized Radial heat-sink for maximum heat transfer |

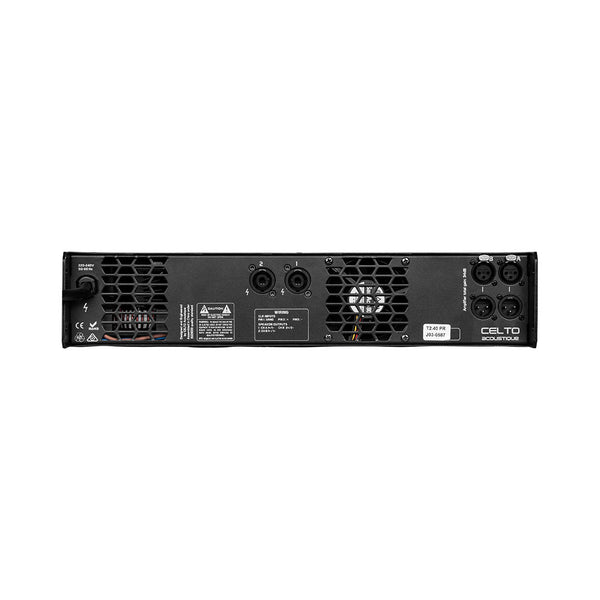

| Rear Panel | 2 NEUTRIK XLR Input with latch, 2 NEUTRIK XLR Link, 2 NEUTRIK Speakon NL4, PowerCon 20A (included) |
| SpeakonWiring | SPK1 = 1+1- CH A / 2+2- | CH B SPK2 = 1+1- CH B / 2+2- Not Used |
| Chassis | 19" 2U height, 468mm total depth |
| Weight Net / Gross | 13kg / 16kg |
T-TOURING amplifiers a re revolutionising the industry, with a host of inventive solutions, unique to this product range. New features include the proprietary PULSAR switch mode power supply and TrueSound, high-current, high-resolution class D output stage.
Suitable for:
Touring and Installation
Multi-functional room
Auditorium and Theater
