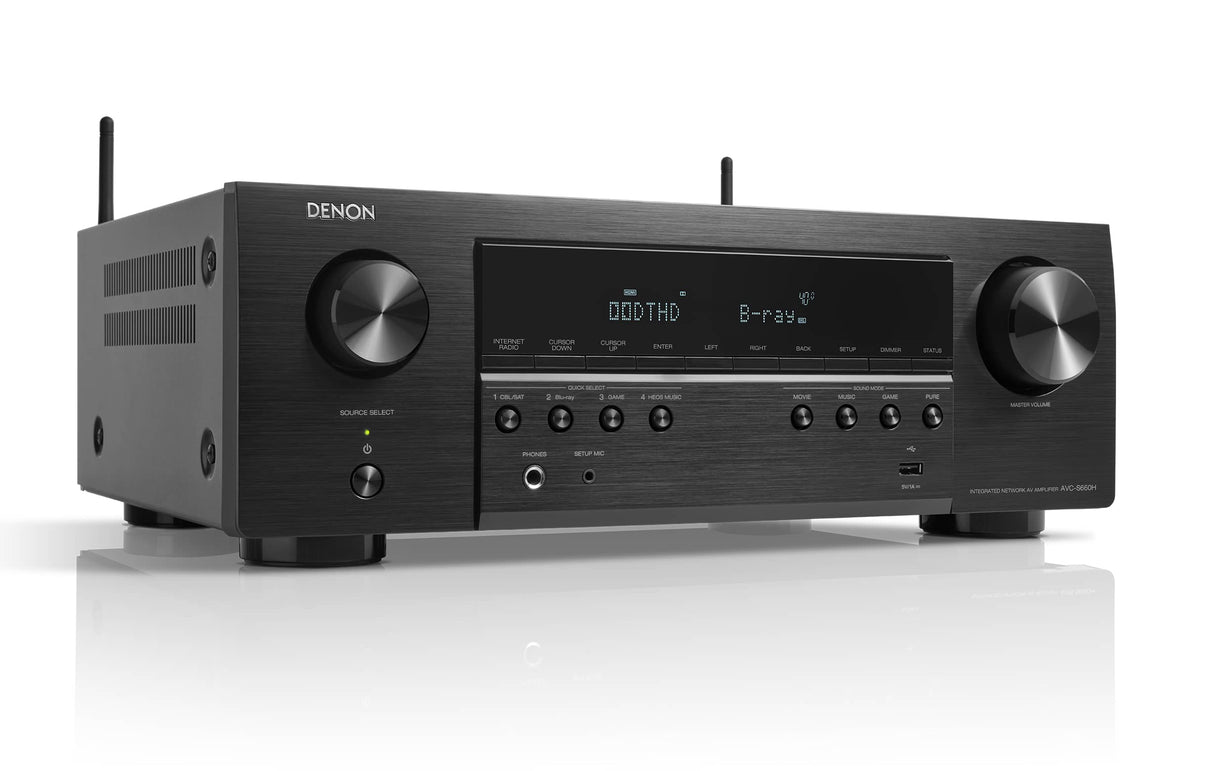

5.2ch 8K AV Receiver, Voice Control and HEOS® Built-in
-
TECHNICAL SPECIFICATIONS
Multichannel Surround
DTS HD Master / DTS:X Yes / No DTS Neo:X / DTS Neural:X NEO: 6 / No Dolby TrueHD / Dolby Atmos Yes / No Dolby ProLogic II / Dolby Surround Yes / No Multichannel Stereo Yes Dialog Enhancer Yes Max Number of Processing (Preamp) Channels 5.1 Sound Enhancements
Discrete Power Amplifier 5 Audyssey MultEQ Audyssey Dynamic EQ / Dynamic Volume Yes / Yes Compressed Audio Restorer Yes Network
HEOS Multiroom and Streaming Yes Lossy Formats: MP3 / WMA / AAC Yes / Yes / Yes Lossless Formats: FLAC / ALAC / WAV Yes / Yes / Yes DSD Audio Streaming up to DSD5.6 FLAC HD 192/24 Yes WAV 192/24 Yes ALAC 192/24 Yes Gapless playback Yes (FLAC, WAV, ALAC, DSD) AirPlay 2 Yes Roon Tested Yes Internet Radio TuneIn Spotify Connect* / Tidal* / Deezer* / others * Yes / Yes / Yes / Yes Amazon Prime Music* / Pandora* Yes / Yes Compatible with Remote APP for Smart Phones Android / iOS Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle Ethernet Ports Yes Wi-Fi Yes Bluetooth Yes Bluetooth Headphone transmission Yes HDMI
HDMI Inputs: Back / Front 6 (3x 8K) / 0 HDCP2.3 support Yes HDMI Outputs: Main / Zone 1 / No HDMI max Resolution (8k / 4k) 8k/60 - 4k/120 HDMI to HDMI Scaling up to 8K 60/50 HDMI: 8K / 4K / CEC / eARC Yes / Yes / Yes / Yes HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG Yes / Yes / Yes / Yes HDMI: ALLM / QMS / QFT / VRR Yes / Yes / Yes / Yes HDMI pass-though in standby mode Yes Multi-room CI
HEOS Multiroom integrated Yes TV Sound grouping Yes Main room multichanel audio - Zone stereo downmix Yes Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog No / No / No / No Zone Audio Output: Speaker / Preout No / No Webbrowser Setup Yes IP Control / RS232 Control / Web Control / App Control Yes / No / Yes / Yes Remote In / Out No / No Others
Voice Control - Works with Amazon Alexa Yes Voice Control - Google Assist / Apple Siri Yes / Yes Auto Speaker Setup by Microphone Audyssey MultEQ FL Display 1 line Graphic User Interface - GUI Hybrid GUI GUI Languages 3 Setup Assistant Yes Quick Select Plus / Quick Select Yes / No Firmware Update by: Network / USB Yes / Yes Variable Cross Over Yes Optimized Bass Redirection Yes ECO Mode Yes Auto Power Off Yes Sleep Timer Yes Inputs Outputs
Composite In / Out 2 / 1 Component In / Out No / No HDMI In / Out 6 / 1 Multi-room Video Out: Video / HDMI No / No Analogue In/out 2 / No Phono (MM) In Yes Digital In: Optical / Coaxial 2 / 1 Multi-room Out: Analog / Digital No / No Multichannel Preout Yes (0.2) Subwoofer Out 2 Speaker Terminal: Gold Plated Screw / Regular Screw No / Yes Number of Speaker Terminals 5 Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB No / No / No / No / Yes USB Audio / Made for iPod / Made for iPhone Yes / AirPlay / AirPlay Tuner: FM / AM Yes / Yes Specifications
Number of Power Amps 5 Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 75W Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 100W Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 150W General
Available colors: Black / Premium Silver Yes / No System Remote Control RC-1243 Pre-programmed / Learnable / LCD Display No / No / No Power Consumption in W 340 Power Consumption No-Sound (ECO On / Off) in W 29 W / 39 W Standby Consumption in W 0.1 CEC Standby Consumption in W 0.5 Network Control On Consumption in W 2.0 Maximum Dimensions w/ Antenna (W x D x H) 434 x 339 x 215 mm Dimensions w/o Antenna (W x D x H) 434 × 339 × 151 mm Weight in kg 7.8 Carton Maximum Dimensions (W x D x H) in mm 523 x 435 x 232 mm Carton Weight (inc. product) in kg 9.7
Onboard technologies
-
Stream your music directly from your Spotify account for high-quality music in your TV room.
-
Use your voice to stream your favorite music services through Alexa with HEOS® Built-in. Turn volume up or down, pause, mute and play the next song — all with your voice.
-
Stream audio or video from your favorite streaming services using your smart device. Hear audio perfectly synced to your speakers from AirPlay 2 sources. AirPlay 2 also supports multi-room audio.
-
Enjoy Dolby Vision content from a compatible source device and TV. Dolby Vision is a stunning HDR imaging technology that brings extraordinary color, contrast, and brightness to the screen.
-
Google Home or other devices with Google Assistant built-in can control content across your listening environment. Ask your Google Assistant to control volume, play, pause, skip tracks and more.
-
Supports HDR (High Dynamic Range), HLG (Hybrid Log Gamma), as well as Dynamic HDR and HDR10+ pass-through to optimize shadows and highlights. HLG offers HDR technology over broadcast content.
-
Play the same song in every room or select a different song for each connected room via a variety of streaming sources. Add Denon Home speakers to more rooms and control it all with the HEOS app.
-
Josh.ai offers flexible voice control for nearly any aspect of your entertainment environment. Use voice commands to control the thermostat, lights, home appliances, speakers, AV receiver, and more.
-
Get more out of your digital music library with searchable, surfable information about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more.
-
Enjoy pristine 8K picture quality on your 8K TV or projector. Supports both 8K pass-through and 8K upscaling of 4K content. Supports HDCP 2.3 for peace of mind when streaming copy protected content.
-
Connect and play music directly from your smartphone, tablet or other compatible device
-
With Siri compatibility, users can play music, adjust volume, and switch inputs using voice control. AirPlay 2 features in compatible devices can also be controlled with your voice via Siri.
-
Customize the sound more precisely to the specifics of your room, harnessing the power of Audyssey MultEQ XT32 to take total control. The app is available for purchase in iOS and Google Play stores.
-
Engineered to make the most of 5.1 Dolby Digital decoding so you get room-filling virtual surround sound whenever you want it.
-
Domotz Pro and OvrC remote system monitoring and management technology programs allow custom integrators to monitor the status of connected products and troubleshoot remotely.
