Features
● Transformer for the speaker outputs at 100V, 70V and P1.
● 3 microphone inputs, Mic 1 with priority and muting function
● 2 aux line input &1 line output for additional mixer or amplifier link
● Individual volume control for each microphone and line input
● Bass and treble control.
● A five-element LED level meter is provided for the quick and easy visual monitoring of sound level

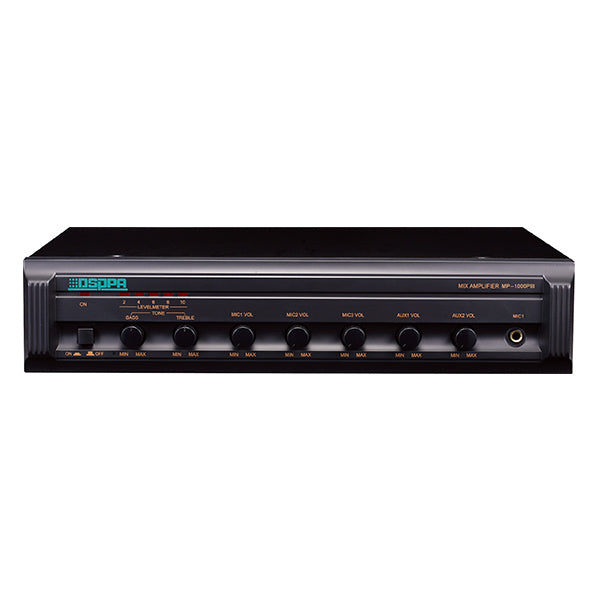

DSPPA MP-1000PIII
Line Voltage Amplifier
Features
- 70V, 100V & 4-16 Ω, Rated Power 350W
- 3 Microphone Inputs, Mic 1 With Priority And Muting Function
- 2 Aux Line Input &1 Line Output For Additional Mixer Or Amplifier Link
- Individual Volume Control For Each Microphone And Line Input
- Bass And Treble Control.
Specifications
| Model | MP1000PIII |
| Rated Output | 350W |
| Speaker Output | 70V, 100V & 4-16 Ω, |
| Input Sensitivity | Mic2,3 : 600Ω, ≤3mv, Unbalanced ;AUX1,2,MIC1 : 10kω, ≤300mv |
| Frequency Response | 50Hz -16khz (±3db) |
| Distortion | < 1% At 1khz , 1/3rated Output Voltage |
| The Ratio Of Signal To Noise | Mic1,2 And 3 : >75db ;AUX1 And 2 : > 80db |
| Protection | AC Fuse; DC Voltage; Overload; Short-Circuit. |
| Power Requirements | AC 220V-240V/50Hz-60Hz |
| Power Consumption | 650W |
| Outer Packing Size (Mm) | (L×W×H)520×430×195 |
| Unit Size (Mm) | (L×W×H)420×338×88 |
| Net Weight | 13.4kg |
