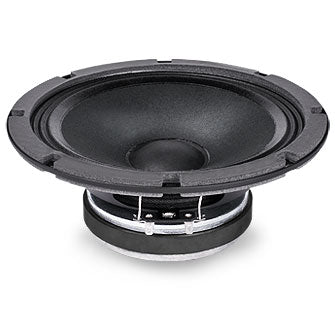

FaitalPRO's 8FE200 8" professional midbass speaker is purpose-built to cover from 60 Hz to 5,000 Hz in three-way speakers, but also works great as a door speaker in car audio applications.
To ensure absolute signal fidelity, FaitalPRO built the 8FE200 with a strong ferrite ring-powered motor. Not only does this increase sensitivity to 95 dB (1W/1m), it keeps the Qts at a respectable figure of 0.44. A triple roll cloth surround, stamped steel frame, and treated paper cone combine to make the 8FE200 a truly durable driver. Made in Italy.
NOMINAL SPECIFICATIONS
| Nominal Diameter |
200 mm (8 in) |
| Overall Diameter |
209.2 mm (8.24 in) |
| Bolt Circle Diameter |
196.9 mm (7.75 in) |
| Baffle Cutout Diameter |
178 mm (7.01 in) |
| Depth |
89 mm (3.50 in) |
| Flange and Gasket Thickness |
8 mm (0.31 in) |
| Net Weight |
2.2 Kg (4.7 lb) |
Shipping Box
(Single Carton Box) |
227 x 224 x 113 mm
(8.9 x 8.8 x 4.4 in) |
| Shipping Weight |
3 Kg (6.6 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.8 Ohm |
| AES Power Handling (1)
|
130 W |
| Maximum Power Handling (2)
|
260 W |
| Sensitivity (1W/1m) |
95 dB |
| Frequency Range |
60÷5000 Hz |
| Voice Coil Diameter |
37 mm (1.46 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Winding Depth |
12 mm (0.47 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
| Flux Density |
1 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Steel |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
0.6 dm^3 (0.021 ft^3) |
| Spider Profile |
1x constant height waves |
|
THIELE AND SMALL PARAMETERS
| Fs |
80 Hz |
| Re |
5.9 Ohm |
| Qes |
0.66 |
| Qms |
13.0 |
| Qts |
0.63 |
| Vas |
13.6 dm^3 (0.48 ft^3) |
| Sd |
191 cm^2 (29.61 in^2) |
| Xmax (4)
|
4.67 mm |
| Xdamage (5)
|
10.4 mm |
| Mms |
15.0 g |
| Bl |
8.2 N/A |
| Le |
0.44 mH |
| Mmd |
13.5 g |
| Cms |
0.26 mm/N |
| Rms |
0.6 Kg/s |
| Eta Zero |
1.02 % |
| EBP |
121 Hz |
|
