FOCAL TECHNOLOGIES

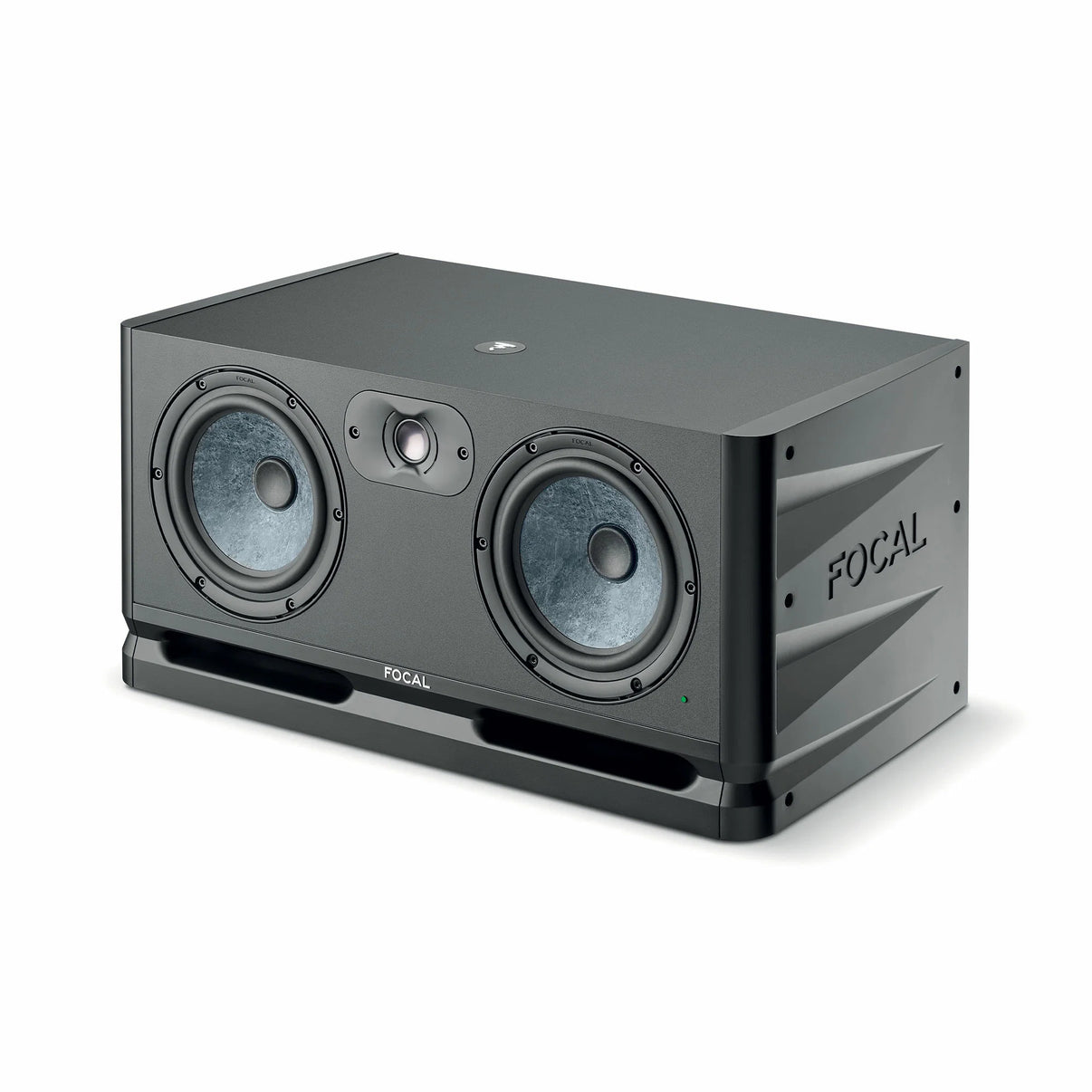

Behind a modern, compact design, the 25 mm aluminum tweeter and 16.5 cm Slatefiber woofers - Focal innovations made in France - deliver precise, distortion-free treble and perfectly balanced midrange.
POLYVALENCE
Disengageable auto-sleep mode, XLR, TRS and RCA inputs, bass and treble level settings: the wide range of functions on offer ensures versatility of use.
High performance and sonic precision in the studio
Specifications
Design
Height : 26 cm / 10.24 in
Width : 55 cm / 21.65 in
Depth : 29 cm / 11.41 in
Weight : 12.2 kg / 26.9 lb
Sound - Acoustics
Product type : 2.5-way monitor
Loudspeakers :
• Woofer : 2 x 6,5" Slatefiber membrane
• Tweeter : 1" Aluminium inverted dome
Frequency response (+/- 3dB) :
38 Hz - 22 kHz
Maximum SPL (peak@1m) :
108 dB
Sound - Electronics
Inputs :
• TRS: symmetrical 10 kOhms
• XLR: symmetrical 10 kOhms
• RCA: asymmetrical 10 kOhms with compensanted sensitivity
LED :
Power On LED
Local supply :
100 - 240V - (T2AL fuse/250V)
High frequency amplifier :
30 W, class D
Bass level (>250Hz) : Adjustable +/-6dB
Power on/of : On/Off switch on the rear panel
Mid-range and low frequency amplifier :
2 x 50 W, class D
Treble level (< 4.5kHz) : Adjustable +/-3dB
Indicators and controls :
• Sensitivity
• Auto standby
• Midrange driver selector (right/left)
• LF Shelv, HF Shelv
