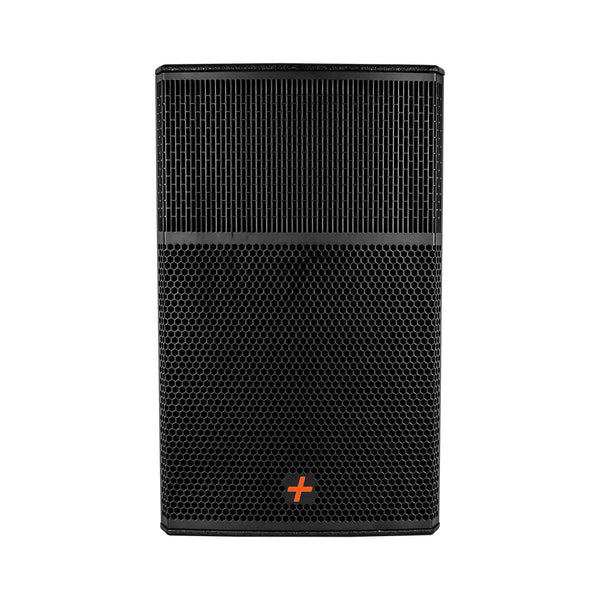

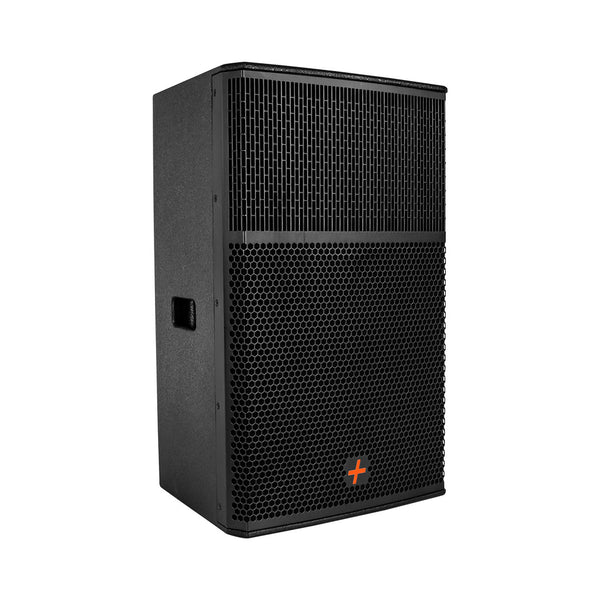

HYBRID+ ALTIUM 15 2000W, 15" Self Powered Full Range Speaker

R 9,450.00 R 10,000.00 Save R 550

Tax included

Only 4 left!

The ALTIUM15 is the latest exciting offering. Branded under the premium Hybrid+ umbrella, extensive research and design has gone into producing this product. It has been a joint venture between our in-house electronic engineers based in Spain with the development of the amplifier module as well as the technical and manufacturing expertise from renowned professional acoustics manufacturer, CELTO Acoustique.
FEATURING THE HYBRID+ ALTIUM15
Full range 15? two way, Self-Powered Speaker with Bluetooth 5.0 Audio Player, DSP frequency curve corrected and limiter protected.

MOBILE APP & ENCODER/DISPLAY
Control of the following functions is possible using a Wi-Fi connection requiring no app installation. Any smart Wi-Fi enabled device can be used to control all functions. Alternatively all functionality can be controlled using the rotarty encoder and dual colour display.

Functions:
• Master Volume (-33dB to +6dB)

• Input Volume (-80dB to 0dB)

• Bluetooth Volume (-80dB to 0dB)

• Mode: Mono Balanced or Stereo Unbalanced

• Input Selection: Line or Mic

• Low Frequency EQ: (-12dB to +6dB)

• Mid Frequency EQ: (-12dB to +6dB)

• High Frequency EQ: (-12dB to +6dB)

• Preset Selection: 1 to 4

• Save function

Four factory-loaded presets have been carefully engineered and selected to suit most applications, from back-round and vocal applications to loud SPL electronic dance music.

PRESET 1 CURVE
Preset 1 (Flat): Tuned to have an extremely flat response from 40Hz – 20KHz, with a very gradual roll off of -1.5dB across the range. Preset 1 is best suited for live, vocal applications with highly dynamic content.

PRESET 2 CURVE
Preset 2 IMusic): The low frequency has been boosted by 3dB from 40 – 120Hz, and the high frequencies by 2dB from 8 – 20KHz. Mid-range frequencies have been cut by 1.5dB from 1.5 – 2KHz. Preset 2 is best suited for Electronic Dance Music or any other application where the bass line is the main feature of the acoustic content.

PRESET 3 CURVE
Preset 3 ISatellite Live): Tuned to have an extremely flat response from 90Hz – 20KHz. A high-pass filter has been activated on the LF, cutting frequencies pre 90Hz. Preset 3 is best suited as a standalone for speech or for applications where a separate sub-bass cabinet is being coupled to the ALTIUM15.

PRESET 4 CURVE
Preset 4 ISatellite Music): Tuned with the HF boosted by 3dB from 8 – 20KHz. A high-pass filter has been activated on the LF, cutting frequencies pre 90Hz. Preset 4 is best suited for applications where a separate sub-bass cabinet with high SPL is being coupled to the ALTIUM15.

PHASE RESPONSE
Presets 1-4: All presets have been time-aligned between the LF and HF for perfect phasing. Both LF and HF limiters have been activated to perform in a smooth undetectable manner whilst protecting acoustic components.

CABINET CONSTRUCTION
• Designed and Manufactured by CELTO Acoustique exclusively for Hybrid+

• 1mm precision CNC manufacturing process

• Braced 15mm Birch plywood

• 4 Coats of Textured Half Gloss Black Paint, UltraTex V3 (USA)

• Pressurized Tongue and Groove assembly using Franklin Multibond Glue (USA)

• Braced 1.5mm powder-coated, dual tone design grille

• Anti-corrosion stainless steel machine screws and nuts throughout the cabinet

• Internally constructed metal cup handles

• Seven M8 fly points (3 Top, 3 Bottom, 1 Back)

• Dual angle fibre reinforced ABS 35mm

15? LF ACOUSTICS
• Custom designed and manufactured by CELTO Acoustique exclusively for Hybrid+

• Model: 15MB354-4

• Power rating: 1400W Peak, 700W Program, 350W rms

• Impedance: 40

• Aluminium Die-cast basket

• Voice Coil: 2.5? (63mm) IN-OUT Copper (350°C EIC Grade)

• Ribbed fibre loaded paper cone with triple roll surround

• Magnet: Ferrite (170 x 20mm)

• Individual QC tolerance within +/- 1.5dB on frequency response

• Individual QC to withstand +15% of rated power (400W rms)

1? HF ACOUSTICS
• Custom designed and manufactured by CELTO Acoustique exclusively for Hybrid+

• Model: PCD440B

• Power rating: 200W Peak, 100W Program, 50W rms

• Exit: 1? (25mm) • Impedance: 80

• Diaphragm: Space grade Ketone Polymer (UK)

• Unlike Titanium, Ketone Polymer doesn’t break or crack with time, offering longevity in sound preservation, reliability and lower distortion.

• Voice Coil: 1.7? (44mm) Flat Aluminium wire (Japan) Magnet: Ferrite (115mm)

• Electronic Crossover: 1.8KHz, 24dB/Octave phase-corrected

• Individual QC tolerance within +/- 1.5dB on frequency response

• Individual QC to withstand +15% of rated power (58W rms)

CLASS D POWER AMPLIFIER
• Dual channel power amplifier (LF and HF)

• Employs latest single chip technology. for added reliability

• Rated power: 2 x 1260W Peak, 2 x 630W Program, 2 x 315W rms @ 4Ohm

• THD+N: 0.006% – 1W

• SNR: 112dB

• Dynamic Range: 113dB

• 100% full load burn-in test before assembly to module

• Designed in Spain, by our in-house electronics department

SMPS (SWITCH MODE POWER SUPPLY)
• 90% Efficiency

• Metal shield enclosed

• Withstands 300Vac surge for 5 seconds

• Low no-load power consumption

• Short circuit protected

• Overload protected

  • Over voltage protected

• Thermal protected

• Withstand 5G vibration test

• 100% full load burn-in test before assembly to module

DSP (DIGITAL SIGNAL PROCESSING)
• 1lN – 2OUT DSP

• 4 User selectable presets

• Preamp DSP Resolution: 56bits

• Converters: 24bits/48KHz with 104 SNR

• Crossover Slopes: up to 48dB/octave

• Crossover filters: Linkswitz-Riley, Butterworth & Bessel

• EQ: 19 x Full parametric EQ

• EQ Types: PEQ, Low Shelve, High Shelve, Notch Filter, High Pass and Low Pass

• Time Alignment: 17ms/Output

• Dual protection compressor- limiters

• Phase correction

• Balanced Line/Mic Input

• Two colour OLED Display and rotary encoder

• Bluetooth 5.0 Audio Player

• 32bit MCU control

• Wi-Fi DSP control – no app installation needed

• Windows 10, Mac OS X, Linux and Android compatible
