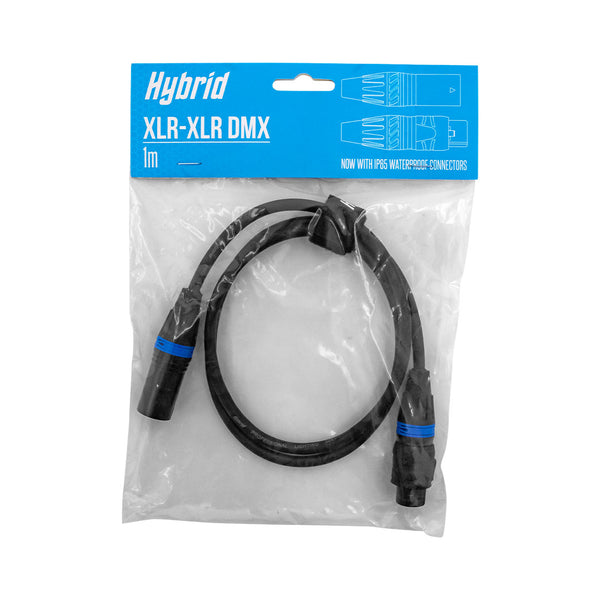

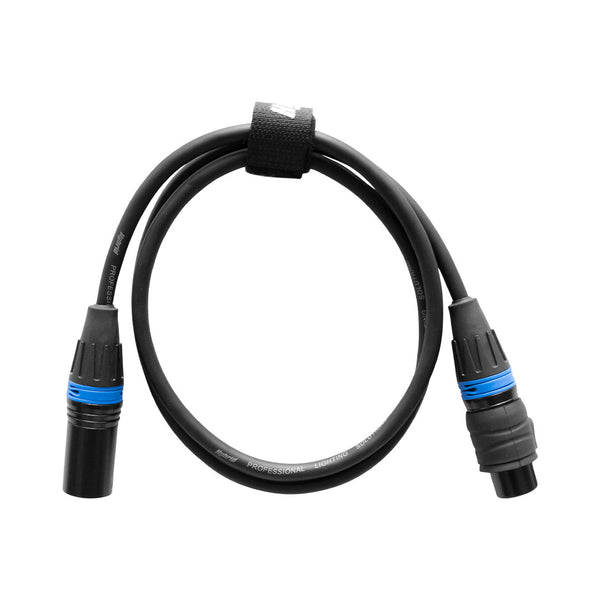

Cable – Lighting DMX 3 pin, XLR male – XLR female, 1m – Waterproof IP65
XLR male to XLR female DMX lighting cable
PVC coated, outer diameter 6mm
DMX 120-ohm specification
Ground, data positve (+) & data negative (-) conductors
Data positve (+) and data negative (-) conductors: 20 strand x 0.12mm copper
Ground conductor: 16 x 9 braided strand x 0.1mm tinned copper
Connectors: Nickel plated with durable moulded PVC screw-in covers
XLR male connections: Pin1 – ground, Pin 2 – data negative (-), Pin 3 – data positive (+)
XLR female connections: Pin1 – ground, Pin 2 – data negative (-), Pin 3 – data positive (+)
Length: 1m
Colour: Black
Hybrid offers a wide range of 3 pin DMX cables that cater for most system integration applications. A comprehensive variation of cable lengths from 1m to 10m with terminal connectors XLR male and female are available. We also offer a DMX cable in 100m rolls.
