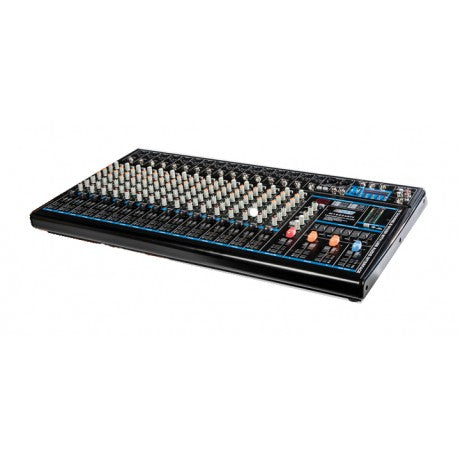

Hybrid M1602UBTX Band Mixer

 SPECS:

Mic channel controls:

• 16 mono mic / line channels
• xlr, 1/4 jack-balanced
• mic input impendance / 3k ohms
• line inpu impendance / 47k ohms
• -20dB attenuation switch
• gain potentiometer
• individual low / 80Hz, mid / 2.5kHz, and
• Hi / 15 kHz, EQ potentiometers / -15/+15 dB
• effects send potentiometer
• pan potentiometer
• level fader / 60mm

General:

• balanced XLR outputs left and right
• unbalanced / 1/4" jack control room outputs left and right
• RCA record output left and right / 10k ohms
• monitor unbalaned output 1/4" jack output / 600 ohms
• mix unbalanced output 1/4" jack / 600 ohms
• effect unbalanced send 1/4" jack / 600 ohms
• 2TK play / unbalanced RSA left and right / 10k ohms
• THD / 20-20kHz, - 0.1%
• noise / -120dB max gain
• frequency response / 20-20kHz, +/-2dB
• inbuilt PSU, IEC mains connection
• dimensions / 570mm {w} 360mm {d} 105mm {h}

Master Controls:

• 16 digital effects processor
• effects repeat potentiometer
• effects send level potentiometer
• effects level fader / 60mm
• monitor send potentiometer
• 2TK / MP3-USB level potentiometer, switchable
• MP3-USB media player, recorder with LCD
• screen play, pause, record, folder select
• headphones potentiometer
• 48v phantom switchable channels 1-9 and 10-12
• individual left and right master level faders / 60mm
• mix out fader / 60mm
• 12 bar Led master level / mix out - monitor
• 7 band graphic equaliser / +/- 12dB 100, 250, 500, 1K, 2K, 4K, 8K - Hz
