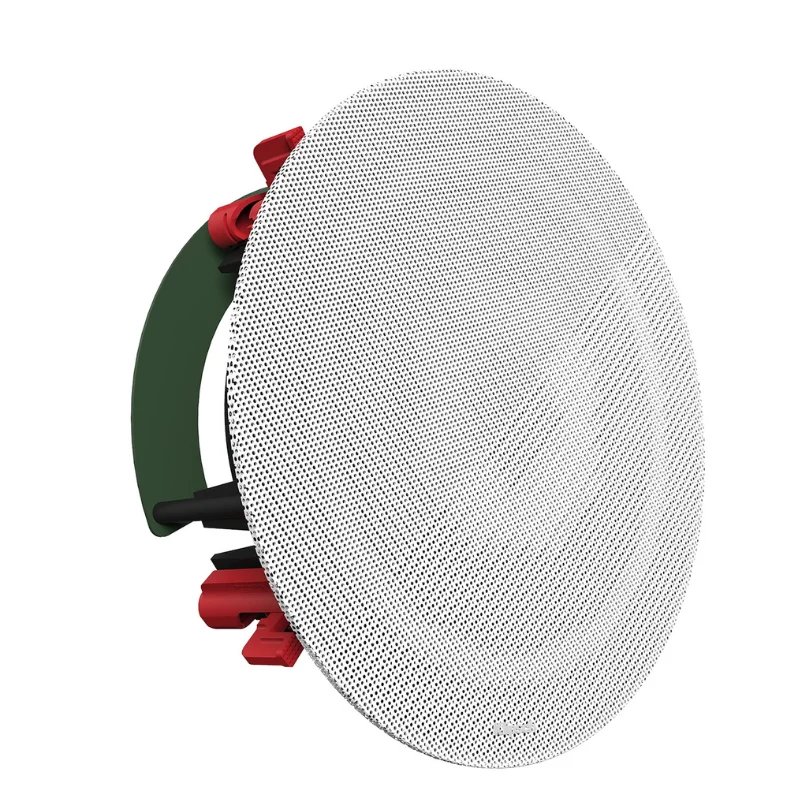

Klipsch Designer DS-160CDT - Skyhook Cinch In-Ceiling Speaker (White)

Featuring the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160CDT features a 6.5” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook™ patented Cinch by Swarm Installation System, your install time is reduced by 75%.

HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles of
our premium architectural and box speaker lines, the all new Klipsch
Designer series brings true Klipsch power and performance. With
a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to
a round Tractrix® horn, the DS-160CDT brings dynamic, powerful,
detailed Klipsch sound to your distributed audio, home theater, or
2-channel system.
PATENT-PENDING SKYHOOK™
TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.
CONTROLLED DISPERSION TECHNOLOGY™
CDT technology allows for the tweeter and the woofer to be aimed up
to 15° in any direction, helping to ensure on-axis frequency response
at almost any listening position.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.

SPECIFICATIONS
FREQUENCY RANGE 77Hz - 20kHz +/- 3dB
HIGH FREQUENCY DRIVER 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix®
Horn
LOW FREQUENCY DRIVER 6.5” (16.51cm) Polypropylene Woofer
SENSITIVITY 91 dB @ 2.83V / 1m
COVERAGE ANGLE 100°
POWER HANDLING 50W RMS / 200W RMS
IMPEDANCE 8 Ohm Compatible
ENCLOSURE MATERIAL/TYPE ABS/Infinite Baffle
FINISH Black Baffle/Frame, White Paintable Grille
PRODUCT DIMENSIONS 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
MOUNTING DEPTH 4.34” (11.03cm)
CUTOUT DIMENSIONS 8.3” (21.1cm)
PRODUCT WEIGHT 7 lbs (3.18kg)
INCLUDED IN BOX Round Magnetic Grille
INSTALL KIT IK-650-C II (Sold Separately)
FIRE RATED ENCLOSURE ME-650-C (Sold Separately)
BUILT FROM 2017
