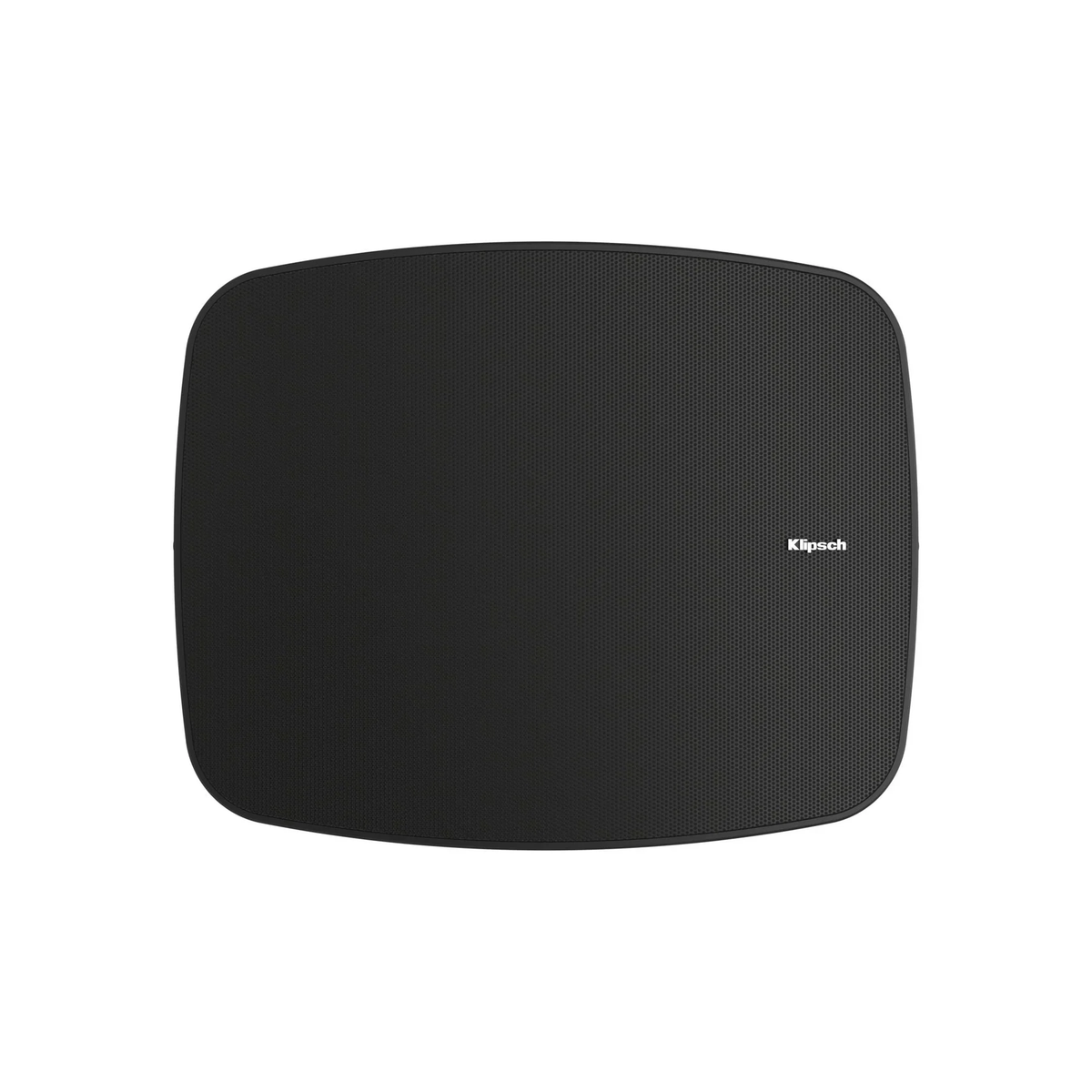

KLIPSCH RSM-650 - FULL-RANGE 6.5” INDOOR/OUTDOOR RESIDENTIAL SURFACE MOUNT LOUDSPEAKER(Black)

FULL-RANGE 6.5” INDOOR/OUTDOOR RESIDENTIAL SURFACE MOUNT LOUDSPEAKER

Klipsch is all about high efficiency, low distortion. Building upon that legacy, we’re introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.

IPX5 RATED
Perfect for indoor and outdoor installations around the globe, the Klipsch RSM Series is IPX5 Rated. Homeowners will rest easy knowing your new speakers will be water resistant and rainproof for even the most challenging weather conditions.

DUAL 5-WAY BINDING POST
The Klipsch RSM Series employs dual 5-way binding posts for versatile connection options.

ALL-NEW 1” TITANIUM COMPRESSION DRIVER
Klipsch outperforms the competition with our all-new 1” Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the RSM Series gives any space extra-wide coverage while providing even and consistent energy for your project. All in all, this means effortless, high-clarity detail.

SET SCREWS ON GRILLE
The included set screws on each grille ensures a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.

SPECIFICATIONS

FREQUENCY RESPONSE
1 56Hz-20kHz +/- 4dB, 46Hz -10dB

POWER HANDLING
2 80 watts (19V) 53Hz-10kHz (320 watts peak)

CALC. MAX. CONT. OUTPUT
3 106dB

SENSITIVITY
4 90dB

COVERAGE
100° +/- 20° 900Hz-20kHz

DIRECTIVITY INDEX
7dB +/- 1.5dB 800Hz-20kHz

NOMINAL IMPEDANCE
8 ohms 4.5 ohms at 160Hz minimum

ACOUSTIC CROSSOVER
2kHz

TRANSDUCERS
6.5” woofer 1” titanium compression driver, on a K-1200M horn/tweeter bridge

ENCLOSURE MATERIAL
All Weather ABS Plastic, Paintable

IP RATING IPX6

ENCLOSURE TUNING
Vented via 3 folded Tractrix ports

INPUT CONNECTORS
Dual 5-way binding post

DIMENSIONS [WITH BRACKET] 12.81”(326mm) x 10.19”(259mm) x 7.57”(193mm)
[9.19”(234mm)]
