Specification
System
Receiver: Rack Mountable Standard Case.
Main Material: Aluminum Panel ,Metal Case, Metal Handheld Channel: 100 Selectable Frequencies Per Channel
Frequency Mode: The Frequency Automatic Infrared Scanning Display Type: LCD
Microphone Mode :Dynamic Polar Pattern :Hyper Cardioid
Operating Range:60M(Open Environment Can Reach 80-100M) Features: Fully Integrated Chip Scheme, Fast Transfer, Long Transmission
Distance, Stable .Performance
Technical Specification

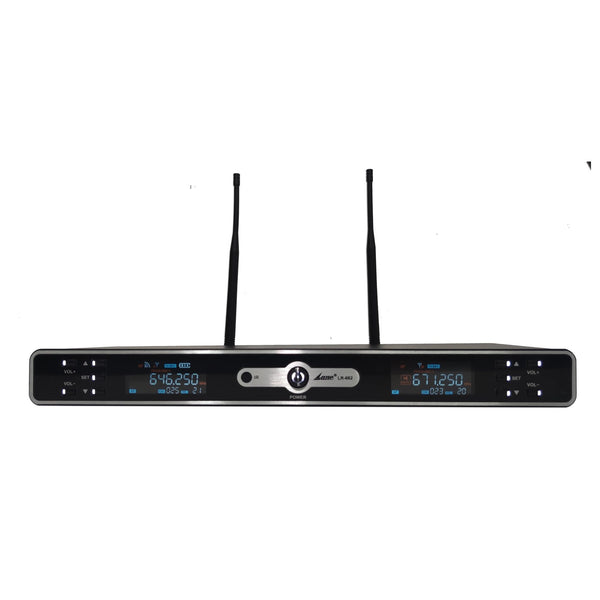

Receiver
Frequency Range:640-690Mhz
Receive Mode:The Secondary Variable Frequency Wireless
Channel:200
Receive Sensitivity:<108dbm Frequency Response:30-18khz
Signal Noise Ratio:>85db Harmonic Distortion:<0.5%
Dynamic Range: >100db Delay:<3ms
Audio Plug:2XLR+Jack Antenna Plug:2TNC500
Input Power Supply: External Power Adapter Receive Distance:>60M
Transmitter
Frequency Range:640-690Mhz Transmit Mode: Micro Power Wireless
Channel:200
Input Power:<10mw
Frequency Response:30-18khz Signal Noise Ratio:>85db Harmonic Distortion: <0.5%
Frequency Error: <15ppm
Frequency Stability: ±0.002% Modulation Mode :FM
Working Current: 100-120ma Antenna: Sheltered Antenna, Impedance
Power:1.5V(AA*2)
