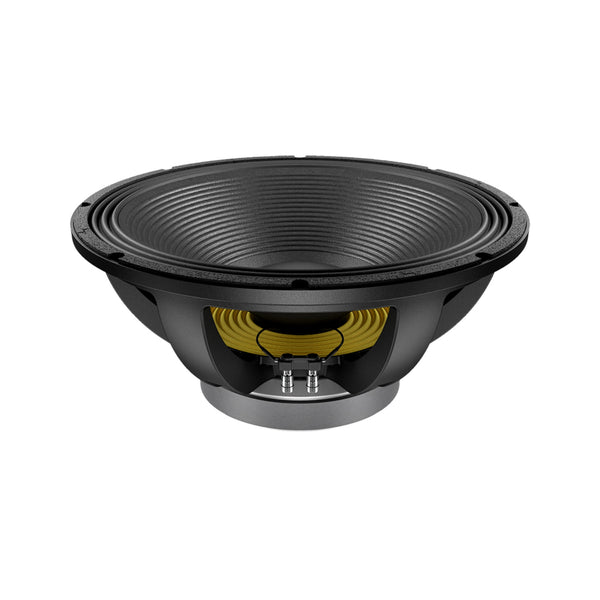

Lavoce SAF184.03 - Loose Speaker

Lavoce SAF184.03 - Loose Speaker

R 6,200.00 R 7,200.00 Save R 1,000

Tax included

Only 2 left!

In store 3abefc92 23cc 47b2 a5ac 6821759c6c25
18" SUBWOOFER
FERRITE MAGNET
ALUMINIUM BASKET DRIVER
FEATURES



- 4 INCH COPPER VOICE COIL

- 96 dB/SPL SENSITIVITY

- 3000 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- 45 mm (1.8 INCH) PEAK TO PEAK EXCURSION

- OPTIMIZED COOLING SYSTEM

- DOUBLE SILICON SPIDER

- ALUMINIUM DEMODULATING RING

- TRIPLE ROLL SURROUND


GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
460 (18)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
7,2
Program power
W
3000
AES Power rating
W
1500
Sensitivity
dB
96
Frequency range
Hz
30 ÷ 1000
Voice coil diameter
mm (in)
100 (4)
Chassis material

Aluminium
Magnet material

Ferrite
Magnet dimensions OD x ID x h
mm (in)
220 x 115 x 30 (8.66 x 4.53 x 1.18)
Coil material

Copper
Former material

Glass Fiber
Cone material

Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material

Polycotton
Xmax
mm (in)
13 (0.51)
Xmech
mm (in)
22,3 (0.88)
Gap height
mm (in)
15 (0.51)
Voice coil winding height
mm (in)
33,5 (1.32)
Driver displacement volume
l (ft³)
8,5 (0.3)
Recommended Enclosure
l (ft³)
172,6 (6.8)
Recommended Tuning
Hz
35
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,8
Resonance frequency (Fs)
Hz
30
Moving mass (Mms)
g (oz)
250,2(8.82)
Compliance (Cms)
mm/N
0,116
Force factor (Bxl)
N/A
28,1
Mechanical Q-factor (Qms)

6,68
Electrical Q-factor (Qes)

0,34
Total Q-factor (Qts)

0,33
Equivalent air volume (Vas)
l (ft3)
245,8 (8.68)
Voice coil inductance (Le)
mH
2,16
Diaphragm area (Sd)
cm2 (in.2)
1225,4 (189.9)
Reference efficiency (Eta 0)

1,79%
Efficiency bandwidth product (EBP)
Hz
88

SHIPPING INFORMATION
Net weight
kg (lb)
16,4 (36)
Multipack size W x D x H
mm x mm x mm (in x in x in)
558 x 558 x 268 (22 x 22 x 10.6)
Multipack weight
kg (lb)
20,6 (45.3)
DIMENSIONS mm (in.)
