Mackie MIX5 - 5-Channel Compact Mixer
Mackie MIX5 - 5-Channel Compact Mixer
Mackie MIX5 - 5-Channel Compact Mixer
Mackie MIX5 - 5-Channel Compact Mixer
Mackie MIX5 - 5-Channel Compact Mixer

Mackie MIX5 - 5-Channel Compact Mixer

SKU: SV_Mackie_MIX5

R 1,650.00 R 2,000.00 Save R 350

Tax included

Only 2 left!
In store 3abefc92 23cc 47b2 a5ac 6821759c6c25

Description

The Mackie Mix5 proves that you don’t have to give up decent sound quality, this extremely compact 5-channel mixer offers a single microphone preamplifier outfitted with a 2-band equalizer plus two additional channels with stereo inputs for keyboards or music players. For added convenience, the Mackie Mix5 even comes equipped with an RCA I/O path for recording and separate volume controls for the main and the headphone outputs.

Mackie MIX5 Overview

The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

Mackie MIX5 Specs

Noise (20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)



All outputs, master levels and channel levels off –100 dBu

All outputs, master levels unity, all channel levels off   –90 dBu

All outputs, master levels unity, 1 channel level unity   –85 dBu




THD+N (20 Hz – 30 kHz bandwidth)



Mic input to main output








Attenuation and Crosstalk (20 Hz – 20 kHz bandwidth)



Inputs to outputs @1 kHz  (-85 dB)

Main mix off @1 kHz  (-75 dB)




Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz








Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain)
Common Mode Rejection Ratio 1 kHz better than –70 dB,  (mic in to insert send out, max gain)
Impedance Mic In: 2 kOhms



All Other Inputs: 10 kOhms or greater

Tape Out : 1 kOhms

Phones: 22 ohms

All Other Outputs: 120 ohms unbalanced,  240 ohms balanced




Maximum Level Mic Inputs (XLR):  +19 dBu



Aux Return In:  +16 dBu [Mix 8]

All Other Inputs:  +21 dBu

All Outputs: +21 dBu




Equalization High Shelving:  ±15 dB @ 12 kHz



Low Shelving:  ±15 dB @ 80 Hz

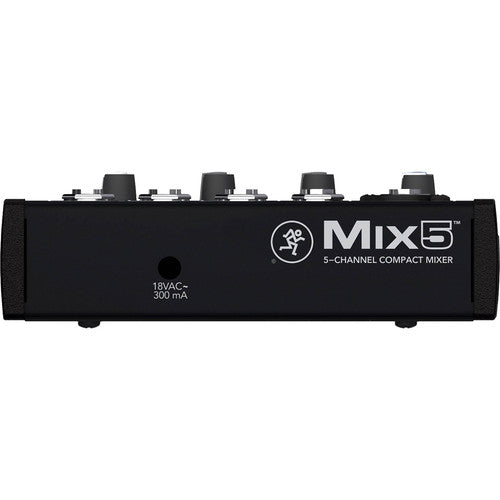

Power Requirements Power Connection:  2-pin DC connector [US], 3-pin DC connector [EU]



Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]

Output: 18 VAC, 600 mA




Dimensions 1.7 x  5.5 x 7.7"  (43 x  140 x 196 mm)








Weight 1.4 lb (0.6 kg)
Packaging Info
Package Weight 2.07 lb
Box Dimensions (LxWxH) 11.45 x 6.55 x 3.2"

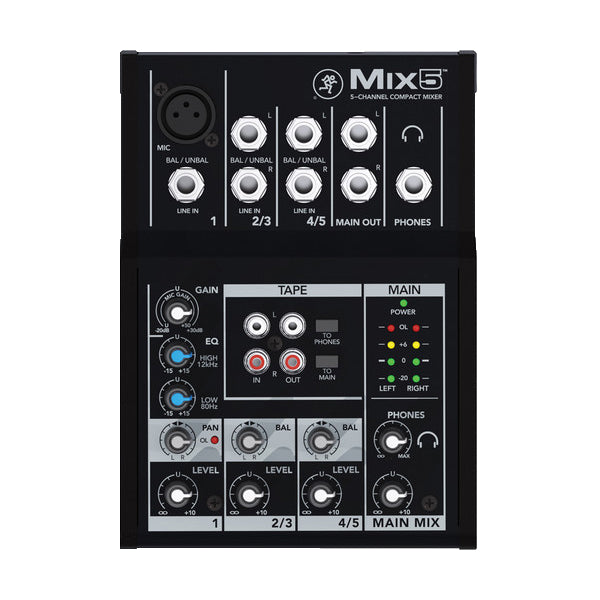

The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.

  • Dedicated stereo RCA inputs/outputs for playback or recording
  • Headphone and stereo control room outputs
  • Rugged, reliable design built to last
  • Compact and portable

Specifications

 Type: Analog

Channels: 5 Inputs –

Mic Preamps: 1 x XLR Phantom Power: 1 Channel Inputs – Line: 5 x TRS, 1 x Stereo (RCA) Outputs – Main: 2 x TRS Outputs – Other: 1 x Stereo RCA (Tape) Headphones: 1 x 1/4″ EQ Bands: 2-band Height: 1.7″ Width: 5.5″ Depth: 7.7″ Weight: 1.4 lbs.
