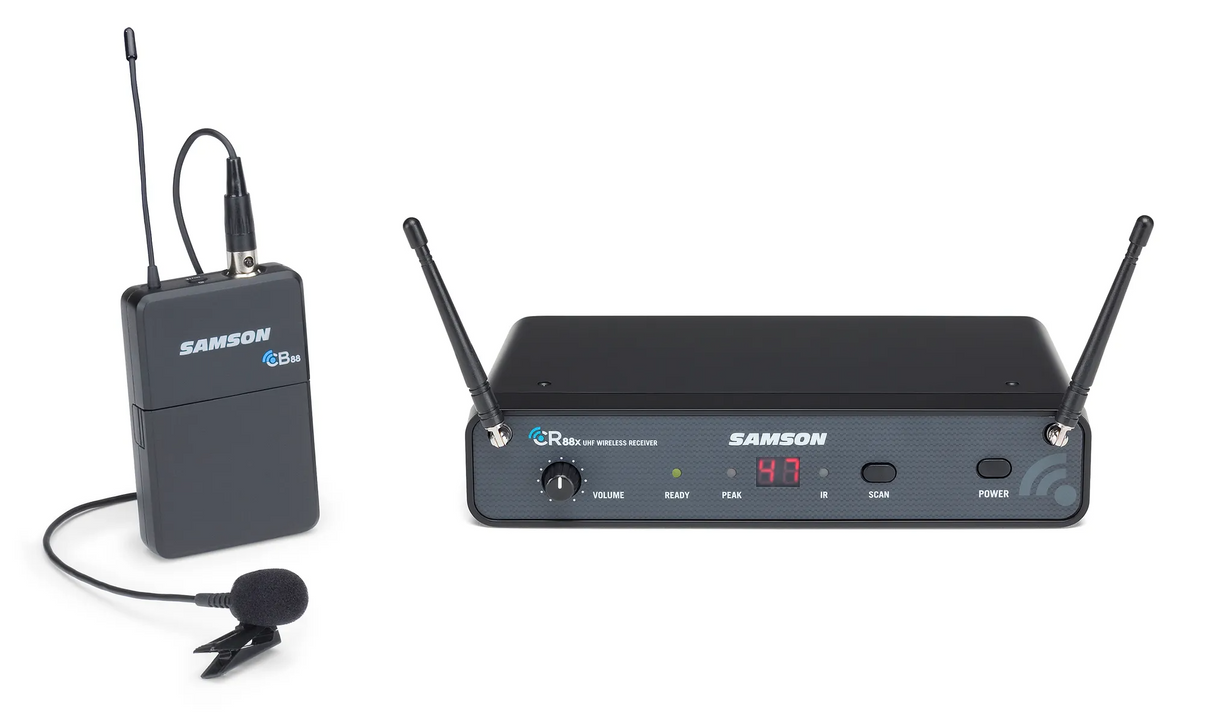

UHF Wireless System with LM5
The Concert 88x Presentation system is the perfect wireless solution for presenters, lecturers, and educators. The included lavalier microphone allows for hands-free movement while still delivering clear and professional audio. Ideal for on-screen talent, plays, and stage productions, as well as in a house of worship, the Concert 88x Presentation system provides reliable wireless performance.
-
Pro Performance. Simple Setup.
Simplicity and performance are at the heart of the Concert 88x wireless systems. One-touch scanning analyzes all available channels and selects the clearest channel for your performance space. An infrared signal then locks the transmitter and receiver together on the selected channel. With 100 frequencies and a wide 25 MHz bandwidth, there are plenty of channels available for your event/application.
-
Sound Secure
The CB88 Beltpack Transmitter features a silent mute switch that eliminates popping noises when muting or unmuting the system, and an adjustable gain control for optimal performance. The CB88 fits securely on the performer's belt, waistband, or even in a pocket and provides up to eight hours of continuous operation from a pair of AA batteries.
-
Freedom to Roam the Stage
True-diversity design minimizes dropouts for loud, clear wireless reception up to 300 feet. Tone key and auto-mute circuitry ensures that only the audio signal from the CB88 beltpack transmitter reaches the receiver, and automatically mutes the system when the transmitter is out of range to prevent unwanted noise from entering the signal path.
-
Making Connections
The rear panel provides both balanced (XLR) and unbalanced (1/4") connections to an amplifier, sound system, or recording console. The half-rack format and included rackmount kit allow single or multiple CR88x receivers to be installed in a portable audio rack or fixed location.
-
Lavalier Microphone
The Samson LM5 Lavalier Microphone features an omnidirectional pickup pattern that provides excellent pickup even when the presenter's head is turned to the side-or when talking face-to-face with another person. Use the convenient clip to attach the microphone directly to a tie, lapel, fabric fold, etc.
Features / Specs
Concert 88x Presentation System
- High-performance professional UHF wireless system
- 100 operating channels across 25 MHz bandwidth
- Up to 8 systems can be used simultaneously per frequency band (region dependent)
- 300' operating range (line-of-sight)
- Rackmount kit included
CB88 Beltpack Transmitter
- Adjustable input gain
- Silent mute button
- Power/Mute status indicator
- Metal belt clip
- Up to eight hours of continuous use from two AA batteries
CR88x Wireless Receiver
- One-touch automatic frequency scan finds the best operating channel
- Two digit LED display
- Infrared link locks the receiver and transmitter to the same channel
- True diversity design minimizes dropouts
- Tone key and auto mute prevents unwanted noise when transmitter is off or out of range
- Balanced XLR and unbalanced 1/4" outputs
Specifications
| Working Range | 300' (100m) line of sight |
|---|---|
| Audio Frequency Response | 50 Hz - 15 kHz |
| T.H.D. (Overall) | <1% (@AF 1 kHz, RF 46 dBu) |
| Dynamic Range | >100 dB A-weighted |
| Signal to Noise | >90 dB |
| Tone Key Frequency | 35 kHz |
| Input Connector | Mini-XLR (P3) |
|---|---|
| Input Impedance | 1M Ω |
| Input Gain Range | 38 dB |
| RF Power | 10 mW EIRP |
| Power Requirements | Two AA (LR6) alkaline batteries |
| Battery Life | 8 hours |
| Dimensions (HxLxD) | 3.75" x 2.44" x 0.75" / 96mm x 62mm x 18.5mm |
| Weight | 0.2 lb / 93 g |
| Audio Output Level - Unbalanced | +14 dBu |
|---|---|
| Audio Output Level - Balanced | +9 dBu |
| Audio Output Impedance - Unbalanced | 810 Ohms |
| Audio Output Impedance - Balanced | 240 Ohms |
| Sensitivity | -100 dBm / 30 dB sinad |
| Image Rejection | >50 dB |
| Operating Voltage | 15 VDC 200mA |
| Dimensions (LxWxH) | 8.25" x 4.9" x 1.75" / 210mm x 125mm x 44mm |
| Weight | 0.88lb / 400g |
