Sennheiser XSW IEM Set (A)

Sennheiser XSW IEM Set (A)

R 13,750.00 R 14,500.00 Save R 750

Tax included

Only 3 left!

In store 3abefc92 23cc 47b2 a5ac 6821759c6c25



The XS Wireless IEM set includes everything you need for an easy start with personal monitoring. Defining new standards for simple, flexible, and reliable wireless in-ear monitoring, this system is designed to help you level up your sound, regardless of your tech experience. Whether a rehearsal or live performance, on a club stage or for a worship service: Benefit from renowned Sennheiser sound and solid pro-grade wireless UHF reliability packed in a convenient and rugged system – letting you focus on playing your best.

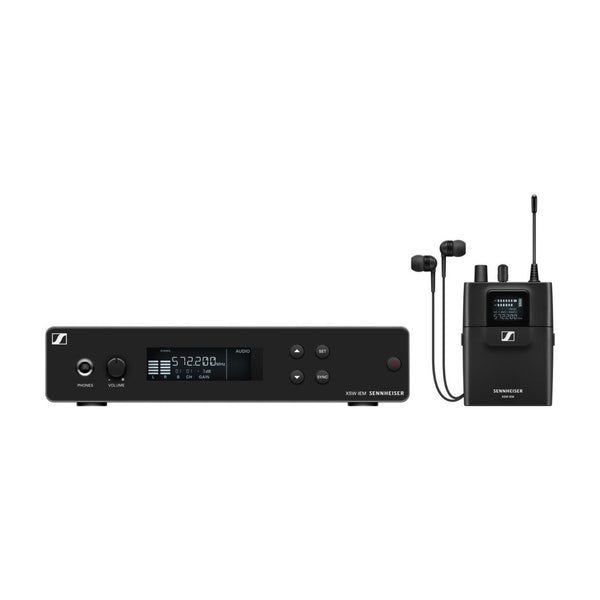

Out of the box, the XS Wireless IEM set has all the components you need to set up your personal monitoring in minutes. XS Wireless IEM is the entry to Sennheiser’s renowned in-ear monitoring sound. It delivers the whole potential of in-ear monitoring with an elegant, easy-to-use interface. No tech expertise is needed to get all the benefits: You hear yourself perfectly in any environment and can aim for new levels of perfection. The system includes a rugged transmitter, a lightweight bodypack receiver, IE 4 in-ear starter headphones, batteries, a power supply with multi-voltage adapter, and a rack mount kit for the transmitter. Eight pre-configured frequency banks in the professional UHF range (with 12 perfectly aligned channels each) keep your connection reliable and clear in every situation. Standard and advanced features make XS Wireless IEM flexible in both small and large applications. The series scales with your demands during rehearsals or live shows, on a club stage or for a worship service. Multiple audio modes match varying performances and mixing demands. You can easily change to mono, stereo, or a two-channel focus mode. The stereo receiver bodypack, although lightweight, is designed with live stages in mind. Setting options are well secured behind a stage-proof panel. A status LED keeps you informed about battery and connection status, while the LC display offers access to further settings. You can fine-tune your preferred focus mode for in-ear monitoring, balance your mix, switch the EQ to enhance the higher frequencies, or select your channel or a manual frequency. The stereo transmitter comes with a rugged metal housing. Fine-tuning the most important options has never been easier. Whether you want to increase gain, check the frequency setup, or sync some more receivers for your band setup: It all needs fewer clicks than the count-in of your drummer. A rack mount kit and a removable antenna allow for flexible setups and configurations. The set also includes a pair of IE 4 in-ear headphones. They reproduce outstanding sound quality and high dynamics, and are equipped with exchangeable ear sleeves to give a secure and comfortable fit. You get a good isolation from environmental noise as well as a very good bass response.


  • Complete set – includes all components needed to start with wireless in-ear monitoring
  • Reliable, easy-to-manage wireless connection in the professional UHF range
  • Multiple audio modes for varying setups or performances and unique mixing options
  • Focus mode allows the ability to prioritize one input over another directly from the bodypack receiver for a user-specific monitoring experience
  • Advanced features like EQ and limiter
  • Perfectly aligned frequency presets in 8 banks with 12 channels each – option for manual tuning
  • An unlimited number of receivers can be used with one transmitter, allowing for cost-effective setups
  • Infrared sensor to sync multiple receivers easily to one transmitter

Sennheiser XSW IEM SET Specs

Frequency Band
A: 476 to 500 MHz
Wireless Technology
Analog, UHF
FM Stereo
Transmitting RF Power
30 mW
Number of RF Channels
Switching Bandwidth
24 MHz
Frequency Step Size
25 kHz
Frequency Banks
8 Banks with 12 Aligned and Precalculated Frequencies Each
Frequency Scanning
Max Transmitters per Band
Max Operating Range
330' / 100 m (Line of Sight)
Nominal/Peak Deviation
±15 kHz / ±24 kHz
Antenna Output
BNC Socket, 50 Ohms
Frequency Response
45 Hz to 15 kHz

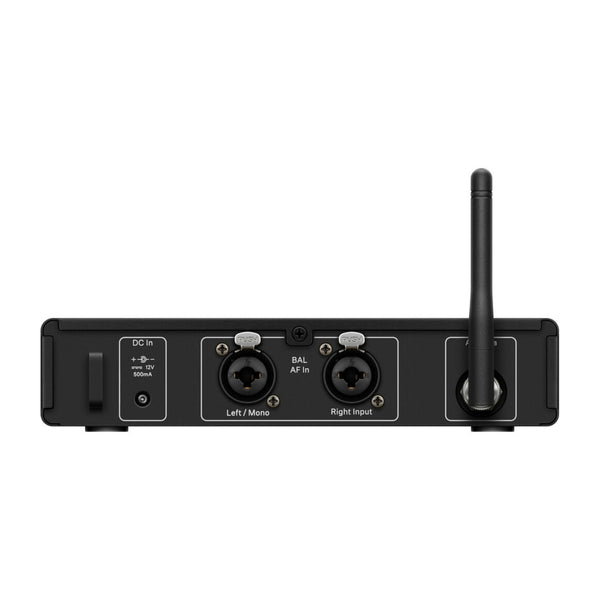

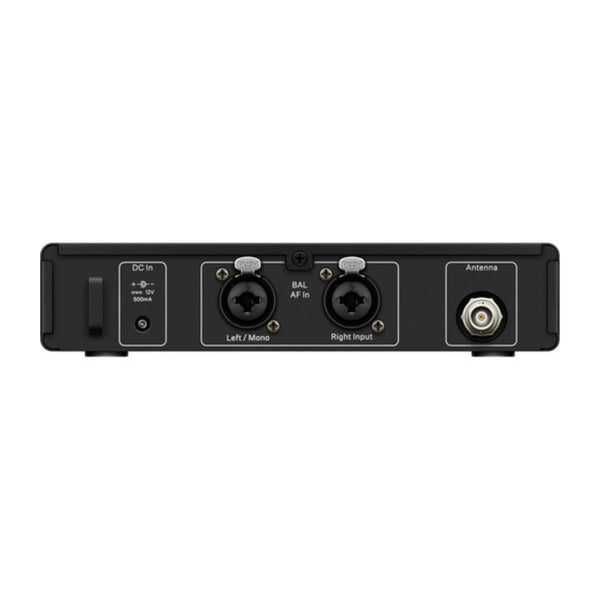

L + Mono / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced
1/4" / 6.3 mm TRS, Headphones Out
Total Harmonic Distortion (THD)
Signal-to-Noise Ratio
≥88 dB, at Nominal Load and Peak Deviation
Power Input Rating
+12 VDC
Current Consumption
Approximately 400 mA
Temperature Range
32 to 104°F / 0 to 40°C
Approximately 7.9 x 5 x 1.7" / 200 x 128 x 42 mm
Approximately 24.7 oz / 700 g
Wideband, Stereo FM
Frequency Band
A: 476 to 500 MHz
Switching Bandwidth
Up to 24 MHz
Sync Method
Nominal/Peak Deviation
±15 kHz / ±24 kHz
10 µV, Fixed
Signal-to-Noise Ratio
≥88 dB, 1 mV, Peak Deviation
Total Harmonic Distortion (THD)
≤ 1%
Output Level
2 x 1.25 Veff at 16 Ohms
High Boost EQ: +10 dB at 13 kHz
-10 dB
Frequency Response
45 Hz to 15 kHz
Typically 45 dB (50 Hz to 10 kHz)
Power Supply
2 x AA Batteries, 1.5 V
Nominal Voltage
3 V
Operating Time
Approximately 6 Hours, Depending on Volume Level
Temperature Range
32 to 104°F / 0 to 40°C
3.7 x 2.8 x 1" / 95 x 70 x 26 mm
3.9 oz / 110 g, Including Batteries

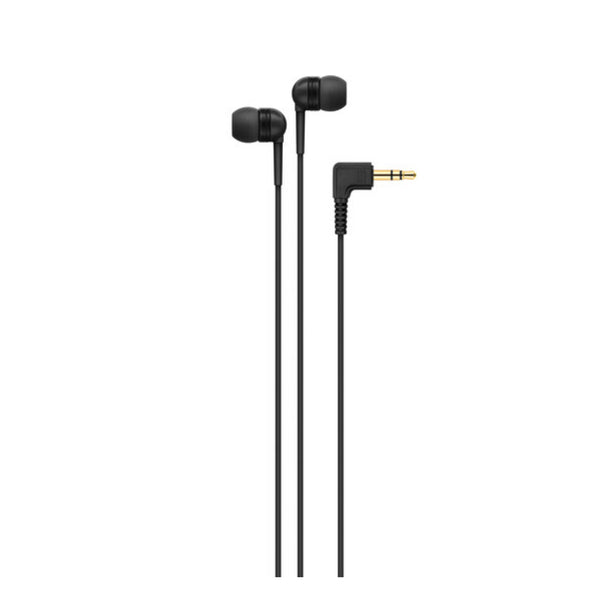

Frequency Response
40 Hz to 20 kHz
106 dB, (1 kHz, 1 mW)
Nominal Impedance
6 Ohms
Cable Length
4.6' / 1.4 m
1/8" / 3.5 mm TRS, Stereo, Gold-Plated
Temperature Range
23 to 122°F / -5 to 50°C
