Overview

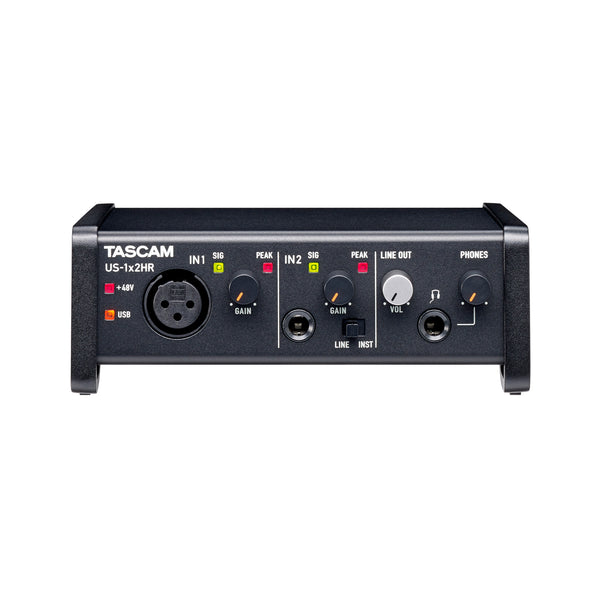

1 XLR mic input and 1 TRS line/guitar input audio interface with 192 kHz support and USB-C bus power connection. The included loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-1x2HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance, thanks to the newly enhanced audio circuit.
Equipped with two inputs (1 mic / 1 line) and one USB-C port for USB bus power connection.
High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.
Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.
The US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.
US-HR models also come with a free 3-month subscription to Auto-Tune Unlimited, a comprehensive suite of industry standard pitch correction and vocal effects.
The US-1x2HR can be used with computers or smartphones to easily create podcasts or live streams. The audio can be switched between stereo/mono, and the loopback function allows the audio from the computer to be returned to the streaming software for playback during live streams. US-1x2HR also supports OBS, which is popular and used worldwide.
The US-1x2HR can be used as an interface for iPad and other iOS devices.
Capitalizing on our experience being one of the pioneers in manufacturing USB audio interfaces, we achieved further stability in our native driver. The audio buffer size can be set starting from 4 samples (Windows only) to give the best performance to every different environment; maximizing the capability of the computer in use while creating a low-latency environment.

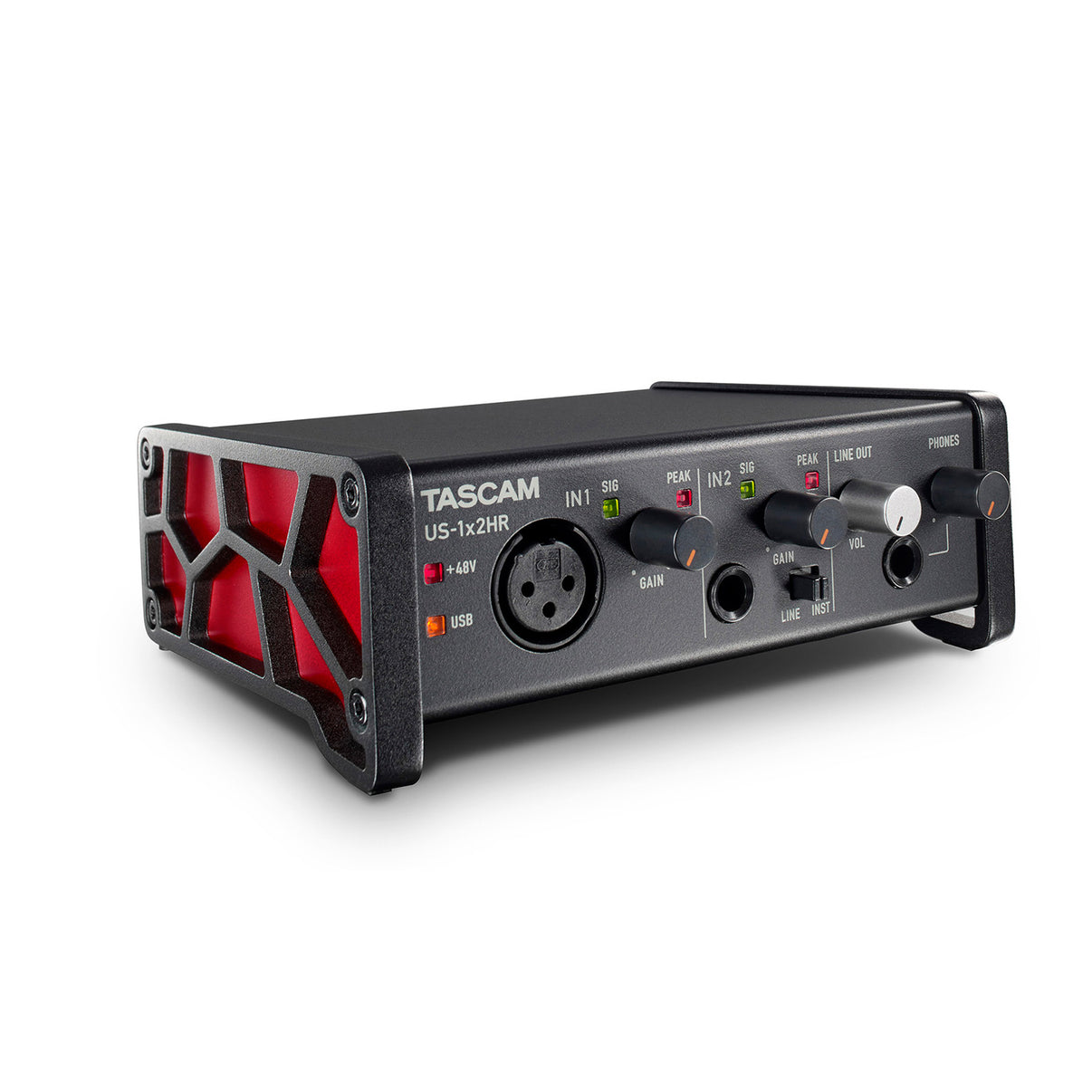

The US-HR models share a solid and practical design intended to withstand long hours of hard use. Its robust metal jacket not only improves its durability but, combined with dye-cast aluminum side panels, provides a sleek, eye-catching design. In addition, all models have just the right weight, so they won't move when cables are connected or disconnected.
Features at a glance
- 2-in/2-out USB audio interface
- Supports up to 24-bit/192 kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 1 XLR input equipped with Ultra-HDDA mic preamp and +48V phantom power
- 1 TRS line/inst. input
- RCA line L/R inputs
- RCA line L/R outputs
- 1 headphone output
- USB Type-C connection (USB Type-A to Type-C cable included)
- Powered by USB bus power
- Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- Extensive line-up of bundled software
- Steinberg Cubase LE, Cubasis LE 3
- IK Multimedia Sample Tank 4 SE
- Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- OBS support
Specifications
| Sampling frequency | 44.1k/48k/88.2k/96k/176.4k/192k Hz |
| Quantization bit rate | 24bit |
| Analog audio inputs | |
| MIC IN (IN 1) | |
| Connector | XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED |
| Input impedance | 2.４k ohms |
| Maximum input level (GAIN:MIN) |
+9dBu (2.183Vrms) |
| Gain | 58dB |
| LINE/INST IN(IN 2) | |
| LINE IN | |
| Connector | 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED * When set to "LINE" at LINE/INST switch |
| Input impedance | 10k ohms |
| Maximum input level (GAIN:MIN) |
+20dBu(7.75Vrms) |
| Gain | 45dB |
| INST IN | |
| Connector | 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED * When set to "INST" at LINE/INST switch |
| Input impedance | 1M ohms or more |
| Maximum input level (GAIN:MIN) |
+3dBV(1.1425Vrms) |
| Gain | 45dB |
| LINE L/R IN | |
| Connector | RCA pin-jack, UNBALANCED |
| Input impedance | 10k ohms |
| Maximum input level | +6dBV(1.9953Vrms) |
| Analog audio outputs | |
| LINE OUT | |
| Connector | RCA pin-jack, UNBALANCED |
| Output impedance | 100 ohms |
| Maximum output level | +6dBV (1.995Vrms) |
| PHONES | |
| Connector | 6.3mm(1/4") stereo phone jack |
| Maximum output level | 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded) |
| Control IN / OUT | |
| USB | |
| Connector | USB Type-C |
| Format | USB2.0 HIGH SPEED (480Mbps) |
| DC IN 5V | |
| Connector | USB Micro B type |
| Power | |
| When connected PC | USB bus powered |
| When connected iOS | USB power adapter (that can supply 5V and a current of at least 700mA)*1 External battery pack (that can supply 5V and a current of at least 700 mA)*2 *1 We strongly recommend using TASCAM PS-P520E AC adapter or the USB power adapter included with the iPad/iPhone. No USB power adapter is included with an iPod touch. To use it with an iPod touch, purchase a genuine Apple USB power adapter (that can supply 5V and a current of at least 700mA) separately. *2 We strongly recommend using a TASCAM BP-6AA external battery pack. If using another external battery pack or mobile battery, purchase one that can supply 5V and a current of at least 700mA. |
| Power consumption | 1.8W |
| Dimensions | 146(W) × 55(H) × 120(D)mm (including protrusions) |
| Weight | 623g |
| Operating temperature | 5 to 35°C |
| Accessories | USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty) |
Audio performance
| Mic amp EIN (equivalent input noise) | -128dBu or less (150ohm termination with gain knob at MAX) |
| Frequency response | |
| MIC IN 1 | |
| 44.1k/48k Hz | 20Hz to 20kHz, +0dB/-0.4dB(JEITA) |
| 88.2k/96k Hz | 20Hz to 40kHz, +0dB/-0.4dB(JEITA) |
| LINE IN 2 | |
| 44.1k/48k Hz | 20Hz to 20kHz, +0dB/-0.3dB(JEITA) |
| 88.2k/96k Hz | 20Hz to 40kHz, +0dB/-0.3dB(JEITA) |
| LINE OUT | |
| 44.1k/48k Hz | 20Hz to 20kHz, +0.2dB/-0.4dB(JEITA) |
| 88.2k/96k Hz | 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA) |
| THD + N | 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF) |
| 0.0027% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF) | |
| 0.0015% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF) | |
| S/N ratio | 109dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight) |
| 105dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight) | |
| 110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight) | |
| Crosstalk | 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum) |
Computer system requirements
Windows
| Compatible computers | Windows computer with a USB 2.0 (or higher) port |
| CPU type/speed | 2GHz or faster dual core processor (x86) |
| Memory | 2GB or more |
| Driver |
 ASIO2.0, WDM |
Mac
| Compatible computers | Mac with a USB 2.0 (or higher) port |
| CPU type/speed | 2GHz or faster dual core processor |
| Memory | 2GB or more |
| Driver | Core Audio |
iOS/iPadOS divice
| Driver | Core Audio |
