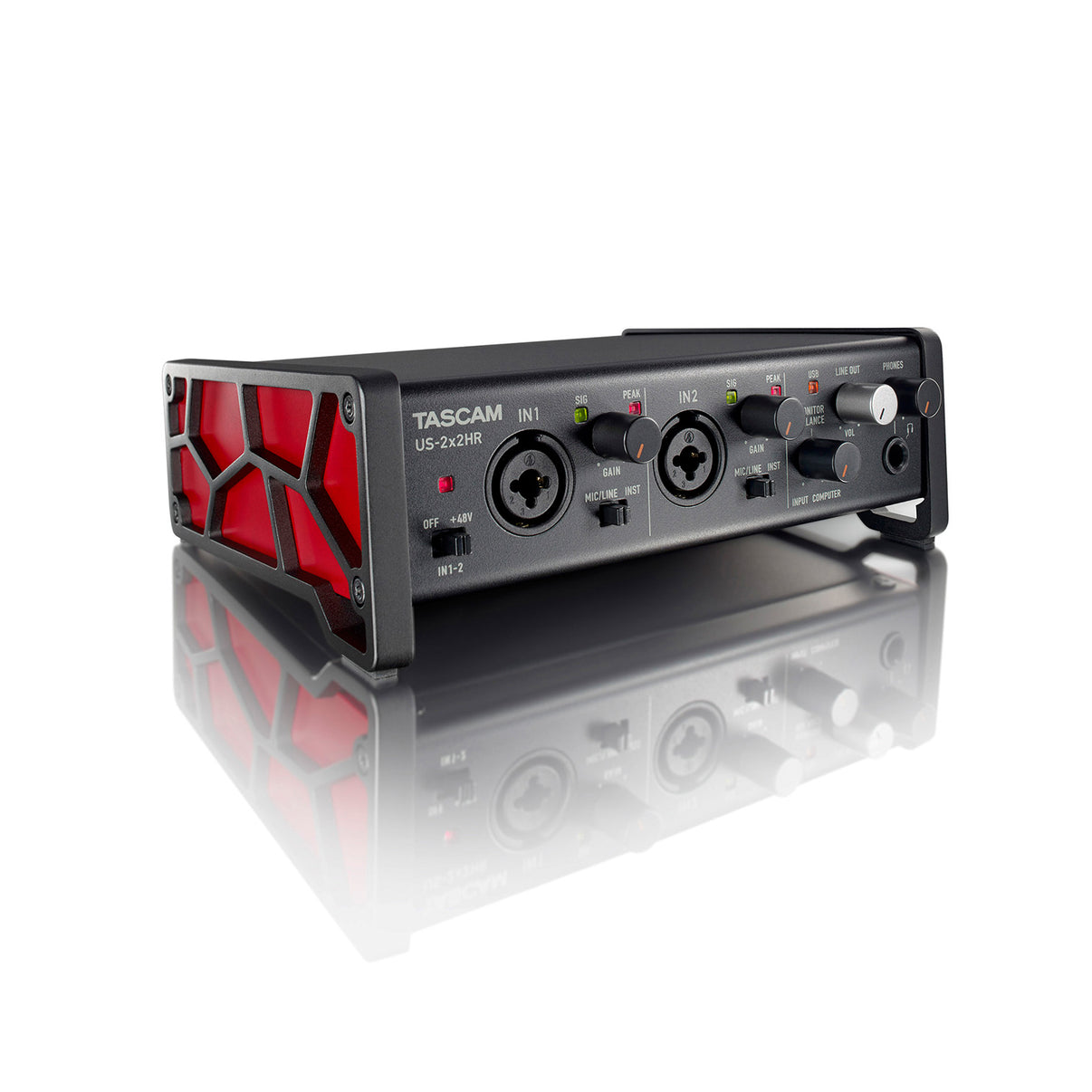

Tascam US-2x2HR - 2Mic, 2IN/2OUT High Resolution Versatile USB Audio Interface

  • Sale
  • R 2,699.00
  • Regular price R 3,103.25
Tax included.


For music production, podcast and live streaming creators

2 combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface applicable for podcasts and live streaming. The new US-2x2HR offers simple and intuitive operation plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly improved audio circuit.




The optimal interface for music/multimedia creators
US-2x2HR
US-2x2HR

The US-2x2HR is equipped with 2 mic/line inputs with guitar input support that can be used in various music/multi-media production environments such as vocal/guitar simultaneous recordings, as wells as high-quality sound recordings for video production. The unit is also equipped with a USB-C port easily powered by USB bus power.

Natural, crisp & clear sound quality thanks to the implemented Ultra-HDDA Mic Preamp with 192 kHz support
US-2x2HR
Ultra-HDDAUltra-HDDA

High resolution reproduction in the US-HR series has been pursued based on TASCAM's policy to recreate sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit delivers enhanced audio performance with the most transparent and low-noise sound.

Zero-latency direct monitoring function
US-2x2HR

Direct monitoring will diverge signals before sending them to the computer, resulting in smooth, in-time monitoring without any sound delay during both recording and performance.

Spec description

Sampling frequency 44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate 24bit
Analog audio inputs
MIC IN IN 1 / IN 2
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.2k ohms
Maximum input level
(GAIN:MIN)
+9dBu (2.183Vrms)
Gain 56dB
INST IN IN 1 / IN 2
Connector 6.3mm(1/4")TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "INST" at MIC/LINE INST switch)
Input impedance 1M ohms or more
Maximum input level
(GAIN:MIN)
+10dBV(3.162Vrms)
Gain 56dB
LINE IN IN 1 / IN 2
Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
(When set to "MIC/LINE" at MIC/LINE INST switch)
Input impedance 10k ohms
Maximum input level
(GAIN:MIN)
+20dBu(7.746Vrms)
Gain 56dB
Analog audio outputs
LINE OUT 1-2
Connector 6.3mm(1/4")TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance 210 ohms
Nominal output level +4dBu (1.228Vrms)
Maximum output level +20dBu (7.746Vrms)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded)
MIDI IN /OUT
Connector Din 5-pin
Format Standard MIDI format
USB
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
Power
When connected PC USB bus powered
AC Adapter (TASCAM PS-P520E, sold separately)
When connected iOS/iPadOS AC Adapter (TASCAM PS-P520E, sold separately)
Power consumption 1.75W
Dimensions 186(W) × 65(H) × 160(D)mm (including protrusions)
Weight 2.43lb (1.1kg)
Operating temperature 5 to 35°C
Accessories USB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner's Manual (including warranty)



Audio performance

Mic amp EIN (equivalent input noise) -128dBu or lower
Frequency response
MIC / LINE IN
44.1k/48k Hz 20Hz to 20kHz, +0dB/-0.4dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0dB/-0.4dB(JEITA)
LINE OUT
44.1k/48k Hz 20Hz to 40kHz, +0.2dB/-0.1dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
THD + N 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
S/N ratio 110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight))
110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
Crosstalk 95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)



Computer system requirements

Windows
Compatible computers Windows computer with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor (x86)
Memory 2GB or more
Driver ASIO ASIO2.0, WDM, MIDI
Mac
Compatible computers Mac with a USB 2.0 (or higher) port
CPU type/speed 2GHz or faster dual core processor
Memory 2GB or more
Driver Core Audio, Core MIDI
iOS/iPadOS device
Driver Core Audio
* To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter is necessary.
