The smart way to sound like a record.
- Tone Shaping Preamps. Get the rich character of a record, not a demo.
- Full 32-Bit Audio. Hear your performance in incredible detail with legendary UA quality.
- Dual Mic & Instrument Inputs. Capture your vocals and instruments at the same time.
- Smart Display. Select channels and set levels fast, with bright visual feedback.
- Auto-Gain & Clip Protection. Never worry about signal peaks ruining your take again.
- Mobile Ready. Record anywhere with USB bus power — no external power supply required.*
- Easy to Use. Quickly connect and record using your favorite music apps.
- Premium UAD Software. Get the same EQs, compressors, synths, and guitar amps used by the pros, plus the award-winning LUNA DAW.
Details
- 2-in / 4-out USB audio interface with professional 32-bit / 192 kHz audio conversion
- Two Tone Shaping Preamps with 60 dB gain and three character modes — Warmth, Focus, and Shine — for the sound of classic analog mic preamps
- Two mic / line inputs with two front-panel Hi-Z instrument inputs for recording your vocals and instruments together, or in stereo
- Full-color Smart Display for bright, at-a-glance visual feedback of inputs, levels, and settings
- Auto-Gain and Clip Protection for perfect recording levels, every time
- Full integration with the UAD Console app and LUNA, including session recall and low-latency cue mixes
- Built-in loopback for podcasting, streaming and content creation
- Independent 48V phantom power per channel for condenser microphones
- USB bus-powered and class-compliant for easy setup with Mac, Windows, iPad, and iPhone*
- Stylish, rugged construction built to withstand years of use
Included Volt Software (Subject to Change)
2-in / 4-out
Tone-Shaping Preamp
Full 32-Bit Audio
Premium UAD Software
Smart Display
Studio Sound at the Push of a Button
Home recordings and phone demos can sound thin and lifeless. Volt gives your recordings incredible tone right from the start. With three mic preamp modes — Warmth, Focus, and Shine — you can quickly add Tube, Solid State, and British Class‑A tone to everything you record.
Hear Every Detail with 32-Bit Converters
When you capture that perfect take, Volt’s best-in-class 32-bit / 192 kHz converters preserve every detail, exactly as it happened. And with loud, clear speaker and headphone outputs, you'll get the perfect monitoring levels, from your first take to your final mix.
Record Your Voice and Instrument Like a Pro
Volt 2 gives you studio-grade Mic / Line and Hi-Z Instrument inputs, letting you record your vocals and instruments at the same time. Its clean 48V phantom-powered mic input lets you connect your favorite studio condenser mic for high-quality recording.
See the Big Picture with Smart Display
Volt 2’s full-color Smart Display shows your inputs, levels, and settings in detail. So you spend less time setting up and more time creating.
Turn Anywhere You Go into a Studio
Volt 2 is bus-powered. That means you don’t need a power outlet or external power supply to make music. Or even a studio space. Just plug Volt into your computer, tablet, or phone, pull up a session and get to work.*

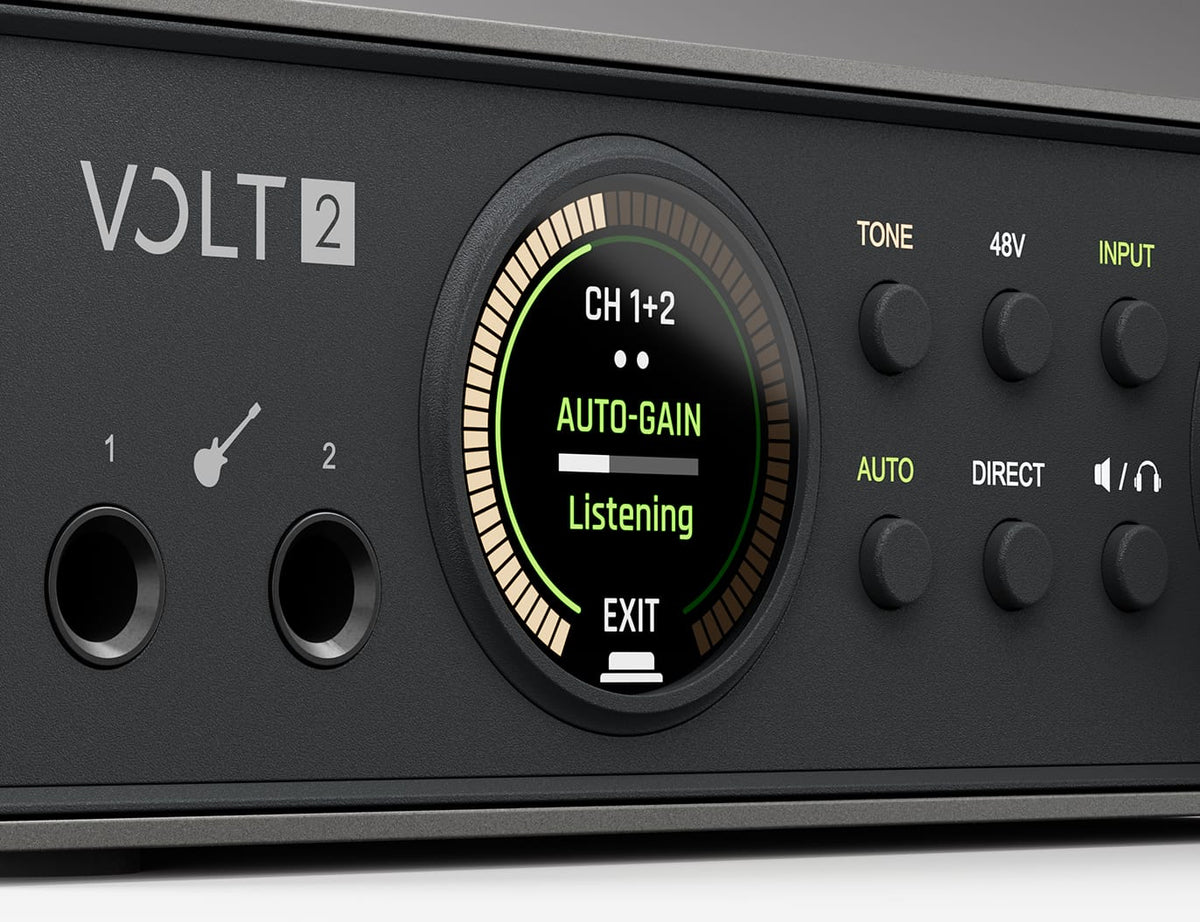

Get the Perfect Levels with Auto-Gain

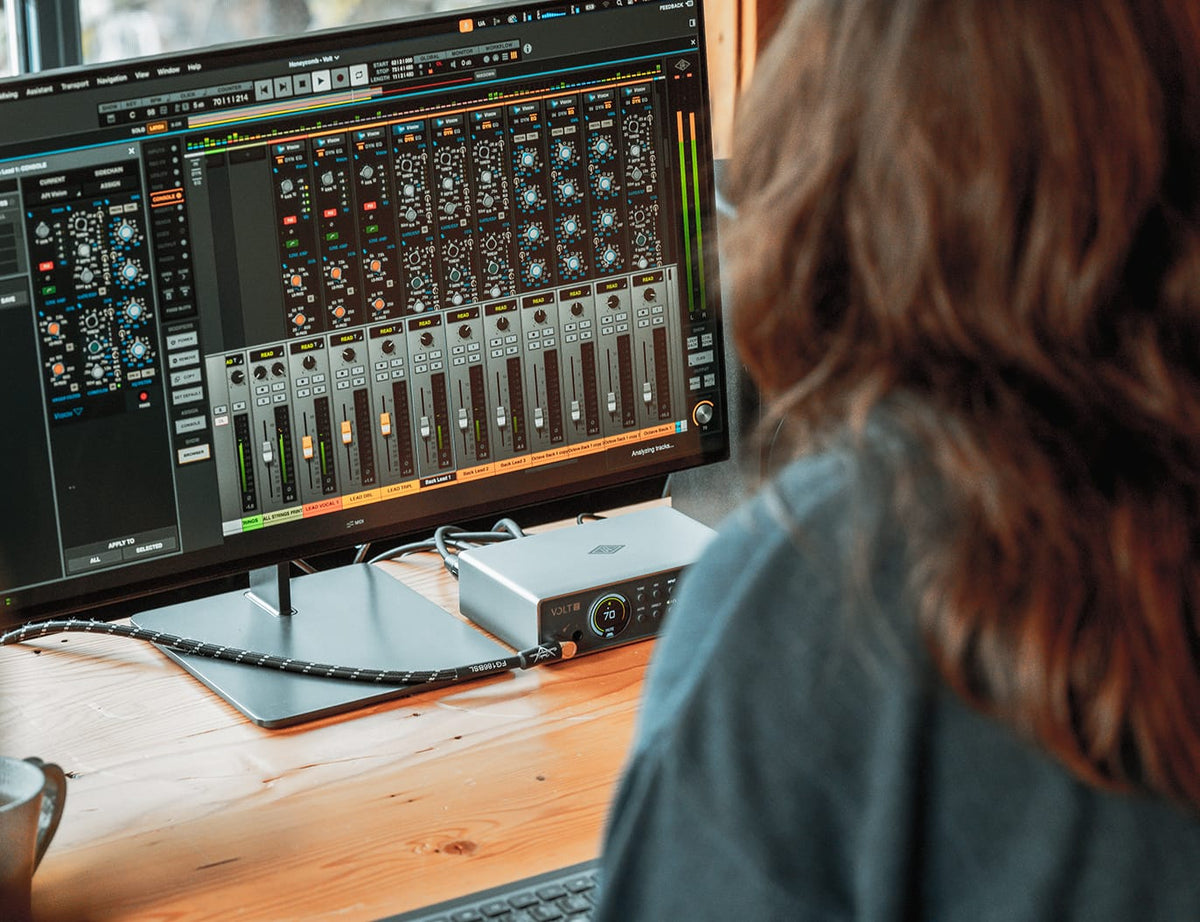

Start Making Music in Minutes

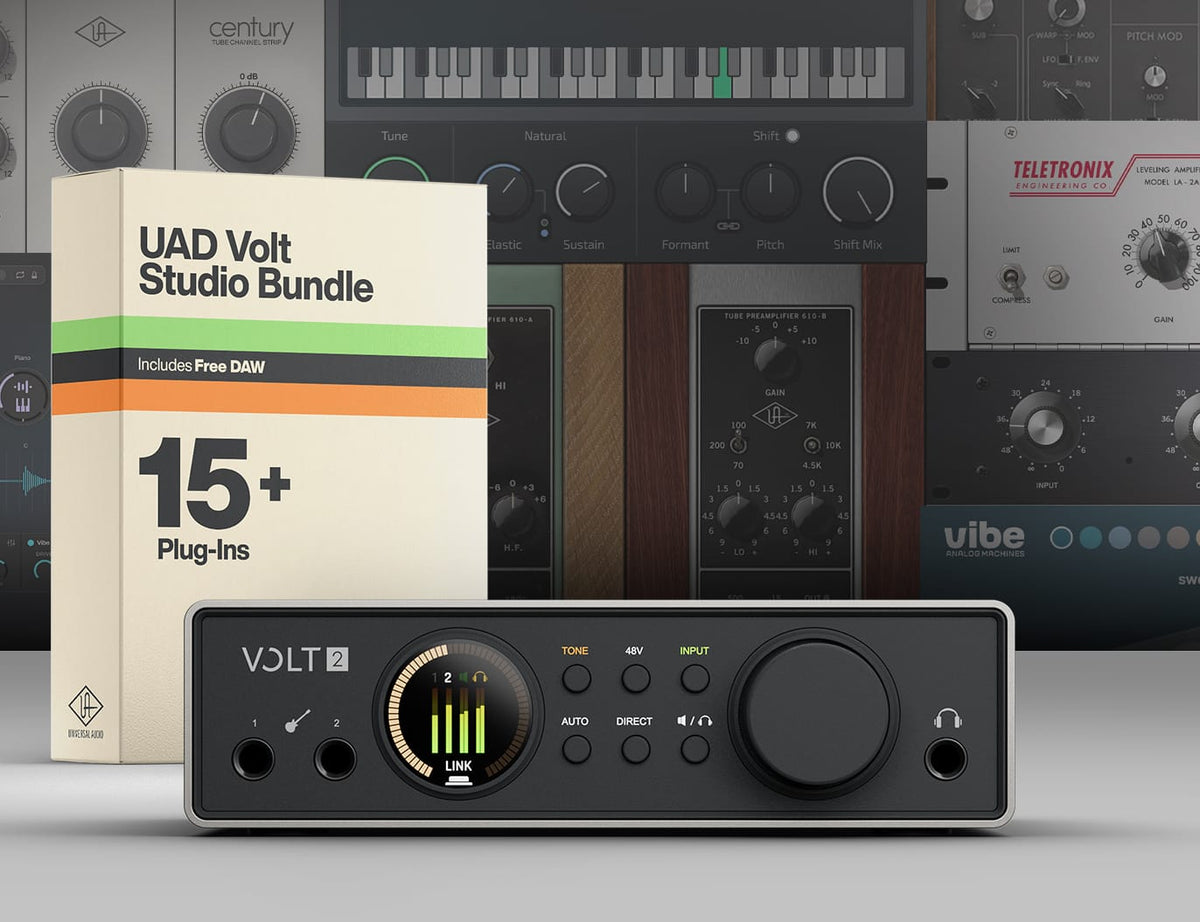

Shape Your Songs with UAD Plug-Ins and LUNA
Ideal for Podcasts and Livestreams
*Requires an Apple Lightning to USB Camera Adapter (except iPhone / iPads with USB-C). Windows systems use the ASIO driver, available in the UA Connect app. Requirements for bus-power vary by model and device.
Specifications
I/O
Simultaneous I/O
2-in / 4-out
Microphone Preamps
Two, 60 dB available gain with Tone Shaping
Monitor Outputs
One stereo
Headphone Output
One stereo (one cue mix)
USB
One USB 2.0 Host port One USB External Power input port – requires 5VDC @ 1A minimum USB Type-C connectors
Digital / Optical
None
MIDI
None
A/D – D/A Conversion
Supported Sample Rates (kHz)
44.1, 48, 88.2, 96, 176.4, 192
Bit Depth
32
Power
USB Bus-Powered
Yes
Power Consumption (@ 5VDC)
3.4W typical, 4.9W maximum
On / Off Switch
None
Analog I/O
Instrument Inputs 1-2
Frequency Response
20 Hz to 20 kHz ±0.02 dB
Dynamic Range (A–weighted)
116 dB
THD + Noise (1 kHz @ -1 dBFS)
-108 dB (0.0004%)
Maximum Input Level
13 dBu
Input Impedance
1 Megohms
Available Gain (Digitally-controlled)
60 dB
Connector Type
1/4" TS unbalanced
Microphone Inputs 1-2
Frequency Response
20 Hz to 20 kHz ±0.08 dB
Dynamic Range (A–weighted)
119 dB
THD + Noise (1 kHz @ -1 dBFS)
-110 dB (0.0003%)
Maximum Input Level
14 dBu
Input Impedance
2 Kilohms
Available Gain (Digitally-controlled)
60 dB
Phantom Power
+48V (switchable per channel)
Connector Type
XLR Combo Jack, pin 2 positive
Line Inputs 1-2
Frequency Response
20 Hz to 20 kHz ±0.05 dB
Dynamic Range (A–weighted)
119 dB
THD + Noise (1 kHz @ -1 dBFS)
-108 dB (0.0004%)
Maximum Input Level
22 dBu
Input Impedance
10 Kilohms
Available Gain (Digitally-controlled)
60 dB
Connector Type
1/4" Combo Jack TRS balanced or TS unbalanced
Monitor Outputs
Frequency Response
20 Hz to 20 kHz ±0.05 dB
Dynamic Range (A–weighted)
126 dB
THD + Noise (1 kHz @ -1 dBFS)
-112 dB (0.0003%)
Maximum Output Level
20.2 dBu
Output Impedance
200 Ohms
Connector Type
1/4" TRS balanced (DC coupled)
Headphone Output
Frequency Response
20 Hz to 20 kHz ±0.08 dB
Dynamic Range (A–weighted)
116 dB
THD + Noise (1 kHz @ -1 dBFS into 300Ω)
-103 dB (0.0007%)
Maximum Output Power into 32Ω
45 mW
Maximum Output Power into 300Ω
24 mW
Connector Type
1/4" TRS stereo unbalanced (DC coupled)
System Requirements
macOS & Windows
Available USB 2.0 (or higher) port
USB cable (included)
Intel, AMD, or Apple silicon processor
Windows 10 64-bit edition or newer
macOS 12 Monterey or newer
Internet connection for software downloads
iPad & iPhone
iPadOS / iOS 16 or newer
DAW Compatibility
All major DAWs, including Ableton Live, FL Studio, GarageBand, Logic Pro, Pro Tools, and more
