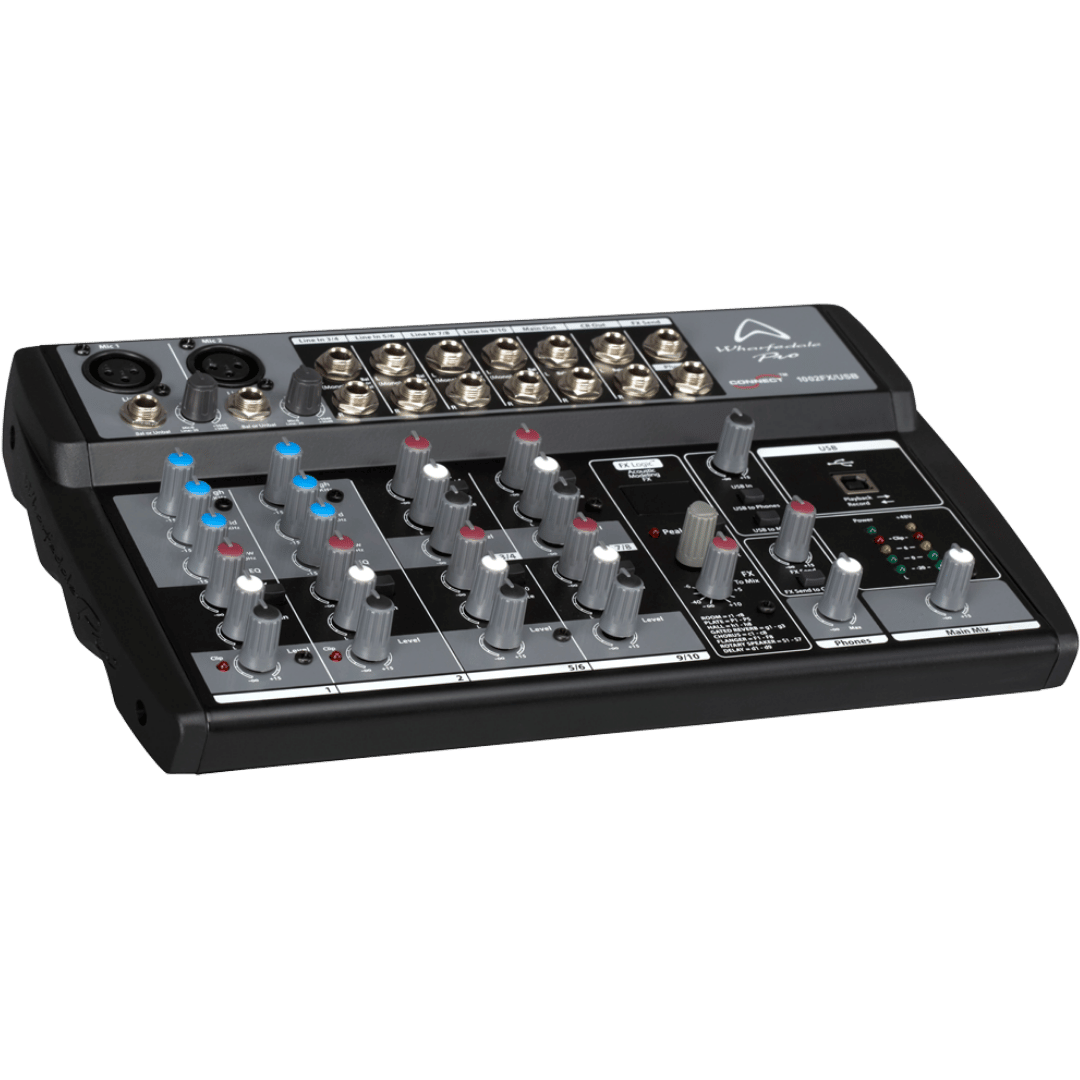

CONNECT 1002USB/FX
Small footprint mixers with USB interfacing
• 10 Channels
• 2 x XLR inputs
• 10 x 6.3mm line inputs
• 3-band EQ
• 4 x 6.3mm outputs
• USB interface
• 56 internal FX
The Connect 1002USB/FX is a compact powerhouse for live and home‑studio use. Its slim profile slips neatly into gig bags while offering multiple inputs, built‑in digital FX and USB playback/recording at high quality.
High headroom and low noise ensure clean, dependable mixing wherever you go.
| Specification | Value |
|---|---|
| Total Channels | 10 |
| Inputs | 2 x XLR, 10 x 6.3 mm jack |
| Outputs | 4 x 6.3 mm jack |
| Balanced Inputs | Yes |
| Total Mic Preamps | 2 |
| Phantom Power | Studio Grade Phantom Power |
| Headphone Output | 6.3 mm Jack |
| Control Room Output | Yes |
| Total FX | 56 |
| FX Types | 56 FX Logic Acoustic Modelling FX including Room, Plate, Hall and Gated Reverb. Chorus, Flanger, Rotary Speaker, Delay |
| FX Send | Yes |
| EQ | 3-Band |
| Pan / Balance Control | Yes |
| USB | 16 bit / 48 KHz |
| Plug and Play | Yes |
| Compatibility | Linux, Mac, Windows |
| Signal To Noise Ratio | >78 dB ±5 dB @ Max Gain |
| Frequency Response | 20 Hz-20 KHz ±1 dB |
| Included Accessory | Power adaptor, User Manual |
| Unpacked - Height (mm) | 52.8 |
| Unpacked - Width Front (mm) | 293.9 |
| Unpacked - Width Rear (mm) | 293.9 |
| Unpacked - Depth (mm) | 183.8 |
| Weight - Nett (kg) | 1.37 |
