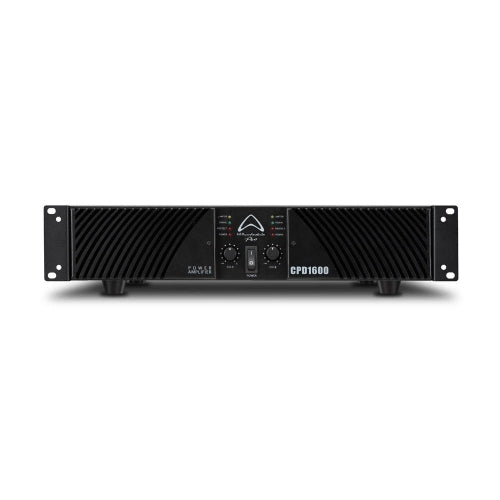

The CPD1600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.
For using in stereo the amplifier delivers 400W RMS per channel at 8 Ohms and 650W RMS per channel at 4 Ohms; a suitable power for small to medium sized complete PA systems. In bridged mode at 4 Ohms the amplifier generates 1600W RMS, perfect for powering a subwoofer integrated into a larger PA system for example.
Maximum headroom audio fidelity and durability are of course vital, whilst additionally we pride ourselves on unbeatable value. The CPD series is manufactured under our strict quality assurance as are all Wharfedale Pro products, making an amp you can trust from price to performance.
Dirty cooling fans reduce efficiency and can lead to overheating.
Its for this reason that we made the CPD series easy to clean. Simply unscrew the front grille, bush off the air filters, and put the grille back on.
This easy maintenance means that a CPD amplifier can survive in the most hostile of working environments.
|Stereo Power Output|
|8 Ohms x 2||400W RMS|
|4 Ohms x 2||620W RMS|
|Bridged Mono Output|
|8 Ohms||1200W RMS|
|4 Ohms||1600W RMS|
|Inputs||2 x XLR|
|Outputs||2 x XLR, 2 x Speakon|
|Frequency Response||20Hz - 30KHz|
|Input Impedance||20K Ohms|
|Maximum Input Level||22dBu (9.7Vrms)|
|Slew Rate||>40V / us|
|Signal to Noise||>100dB|
|Protection||Switchable Limiter, Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute|
|Display||4 segment LED|
|Cooling||Variable Speed Fan|
|Dimensions||88 x 483 x 322mm|
|Net Weight||17kg / 37.48lbs|
|Gross Weight||19kg / 41.89lbs|
