Digital Control With Analog Workflow

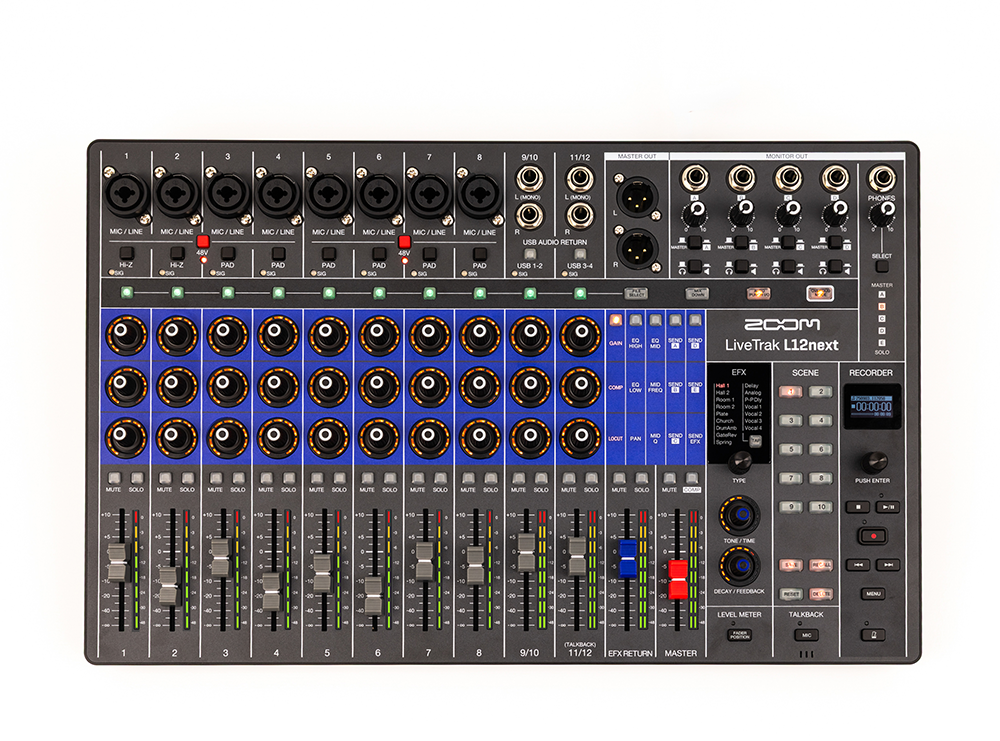

The LiveTrak L12next Digital Mixer / Recorder

Digital Mixing Reimagined

The L12next combines the power of a digital mixer with analog-style operation. Three knobs per channel can deliver High/Mid/Low EQ control. With a simple switch you can also adjust gain, pan, and sends, offering hands-on mixing, just like an analog console.

1. Inputs

   Combo inputs support XLR or 1/4-inch connections. Channels 1 and 2 offer Hi-Z inputs for connecting an electric guitar or bass. Channels 9/10 and 11/12 have TS line connectivity for keyboards and other audio devices.



2. Channel Strip

   In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends.

3. Function Selector

   Choose which controls are accessible on the multi-function encoder knobs ie: EQ, Gain, Sends



4. Custom Mixes

   Five powered headphone outputs can send individual monitor sub mixes to headphones, in-ear monitors, or powered monitor speakers. The main outputs feature XLR connectors to easily connect to your PA.

5. Recording Features

   Quick access to advanced recording capabilities such as mixdown, overdub and autopunch.

6. Main Controls

   LED screen and encoder knob let you access the menu system to create new projects, recall previous projects, and customize your recorder settings.

7. Scene Control

   Save up to ten different scenes and recall your custom settings automatically. Each scene saves fader position, EQ settings, pan, mute, and more.

8. Talkback Mic

   The engineer can use the talkback mic to talk to the artists right from the board.

9. Fader Position

   Fader Position button lets you quickly view saved fader positions when recalling scenes.

10. EFX

    16 built-in effects with fully adjustable parameters. Choose from delay and reverb effects, then apply them to any channel.









    Made for Live Performance

    The L12next puts you in total control, letting you mix with speed and confidence, whether you’re on stage or in the rehearsal room.













    Everything You Need, On Every Channel

    In addition to 60mm faders, each channel has three multi-function encoder knobs, giving you analog style control of gain, EQ, compression, panning, and sends. No more scrolling through menus.






    Significantly Upgraded Preamps

    The L12next’s upgraded preamps deliver clean gain (+70dB), low noise (–128 dBu EIN), and full input flexibility with Hi-Z, PAD, and +48 V phantom power.










    A Recorder for Every Session

    The L12next has advanced recording features and captures up to 12 individual tracks at 24-bit/96 kHz, plus a stereo mix. Its new OLED screen streamlines recording controls and setup.









    For Perfect Takes

    Newly added features such as Overdub Mode and Auto Punch In/Out allow precise layering and easy re-recording. The new File Select button allows you to easily load additional tracks to expand your mix.



    Your Final Mix is Ready

    The L12next’s master channel captures your mix in 32-bit float for pristine, clip-free sound, while the master Compressor adds warm, natural compression that enhances the overall mix.

    Monitoring Options

    ---



    Five Personal Mixes

    With five independent Monitor Outs, each musician can have a personal mix. Outputs support a stereo mix for headphones and in-ears, or a mono mix for stage monitors, making it flexible for live or studio use.











    For the Sound Guy

    The fifth monitor output is designed specifically for the engineer, letting them quickly monitor and adjust both the master and every custom mix. The built-in Talkback function makes it easy for everyone to communicate.










    Custom Scene Recall

    The L12next stores up to 10 scene memories, saving fader positions, EQ, pan, mutes and effects. Instantly recall mixes for live performances or recording in the studio.



    LED Meters

    The L12next’s LED meters show the volume level and encoder position for each channel. The new Fader Position button lets you quickly view saved fader positions when recalling scenes.



    A Little FX
    Goes a Long Way

    Enhance your sound with 16 onboard effects, such as delays and reverbs, with two easily accessible parameter controls.



    Wireless Mixing Control

    Control your mix wirelessly with the L12next Control app for iPad. Adjust faders, scenes, EQ, effects, and more.

    _{*Requires the optional BTA-1 Bluetooth adapter. Wireless range up to 10 m in open spaces.}




    Audio Interface +
    Control Surface

    The L12next is a 14-in/4-out USB audio interface for Mac, Windows, and mobile, supporting 32-bit float/96kHz recording and playback. You can record to your computer and SD card simultaneously, as well as control your DAW.

    Audio Interface +
    Control Surface

    The L12next is a 14-in/4-out USB audio interface for Mac, Windows, and mobile, supporting 32-bit float/96kHz recording and playback. You can record to your computer and SD card simultaneously, as well as control your DAW.




    Stream Ready

    Going live? The L12next integrates seamlessly with streaming software, making it the ultimate hub for podcasts, performances, and online broadcasts.

    Hands-Free Control

    Connect the optional Zoom FS01 footswitch to control key functions like effect mutes, punch-in/out, and playback.



    Rackmount

    The optional RKL-12 rack mount adapter lets you mount your LiveTrak L12next in any standard rack.



    Specs

    Input and output channels

    Inputs	Mono (MIC/LINE)	8
    	Stereo (LINE)	2
    Outputs	MASTER OUT	1
    	MONITOR OUT	5

    Inputs

    Mono (MIC/LINE)	Type	XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
    	Input gain	PAD off: +16 – +60 dB
    		PAD on: −10 – +34 dB
    		Hi-Z on: 0 – +44 dB (when gain boost off)
    	Input impedance	XLR: 4.6 kΩ or more
    		TRS: 4.6 kΩ/1 MΩ (when Hi-Z on)
    	Maximum input level	PAD off: −2 dBu (at 0 dBFS)
    		PAD on: +24 dBu (at 0 dBFS)
    	Phantom power	+48 V
    Stereo (LINE)	Type	TS phone jacks (unbalanced)
    	Maximum input level	+14 dBu

    Outputs

    MASTER OUT	Type	XLR jacks (balanced)
    	Maximum output level	+14.5 dBu
    	Output impedance	200 Ω
    MONITOR OUT	Type	Standard stereo phone jacks
    	Maximum output level	42 mW + 42 mW at 60 Ω
    	Output impedance	55 Ω

    Buses

    MASTER	1
    MONITOR	5
    SEND EFX	1

    Channel strip

    COMP
    LOCUT		40–600 Hz, 12 dB/OCT
    EQ	HIGH	10 kHz, ±15 dB, shelving
    	MID	100 Hz – 8 kHz, ±15 dB, peaking
    	LOW	100 Hz, ±15 dB, shelving
    PHASE

    Level meters

    	8 segments

    Send effects

    	16 types

    Recorder

    Maximum simultaneous recording tracks	14
    Maximum simultaneous playback tracks	12
    Recording formats	Individual tracks: 44.1/48/96 kHz, 16/24-bit, mono/stereo WAV
    	Master tracks: 44.1/48/96 kHz, 16/24-bit or 32-bit float, mono/stereo WAV
    Recording media	4–32GB cards compatible with the SDHC specification (class 10 or higher)
    	64GB–1TB cards compatible with the SDXC specification (class 10 or higher)

    Audio interface

    Input and output channels	Recording: 14 channels
    	Playback: 4 channels
    Sampling frequencies	44.1/48/96 kHz
    Bit depths	24-bit, 32-bit float
    Interface	USB 2.0

    Card reader	Mass storage class USB 2.0 High Speed
    Sample rates	44.1/48/96 kHz
    Frequency response	44.1 kHz: −1.0 dB, 20 Hz – 20 kHz
    	96 kHz: −3.0 dB, 20 Hz – 40 kHz
    Equivalent input noise	Actual measurements: −128dB EIN (IHF-A) at +60dB/150Ω input
    Display	128×64 OLED
    Power	AC adapter: ZOOM AD-19 (DC 12V/2A)
    Power consumption	16 W maximum
    Dimensions	445 mm (W) × 285 mm (D) × 73 mm (H)
    Weight (main unit only)	2.40 kg

    Note: 0 dBu = 0.775 Vrm
